SKU: SF2.3/16DEC-RHP

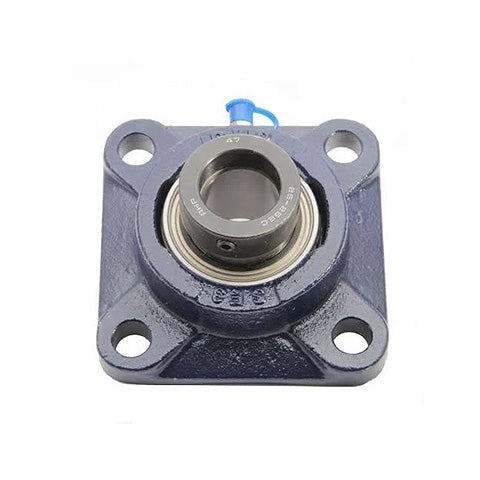

RHP SF2-3/16DEC Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Eccentric Collar Full Width Insert
RHP SF2-3/16DEC Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Eccentric Collar Full Width Insert
Regular price
€157,52
ex VAT
Regular price
Sale price
€157,52
ex VAT
In stock
Price Break
10+
€119,70
20+
€112,98
30+
€111,63
40+
€110,29
50+
€108,94
75+
€107,60
100+
€100,87
200+
€99,53
250+
€98,18
500+
€96,84
1000+
€94,15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 6.374 inch |
| H | 5000 inch |
| J | 5.118 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A3 | 2.936 inch |
| A4 | 0.689 inch |
| B3 | 2.813 inch |
| s2 | 1.095 inch |
| d2 | 3 inch |
| Dynamic load Cr | 43500 N |
| Static Load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-3/16DECG+insonly">1055-2-3/16DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
