SKU: SF2.15/16DEC-RHP

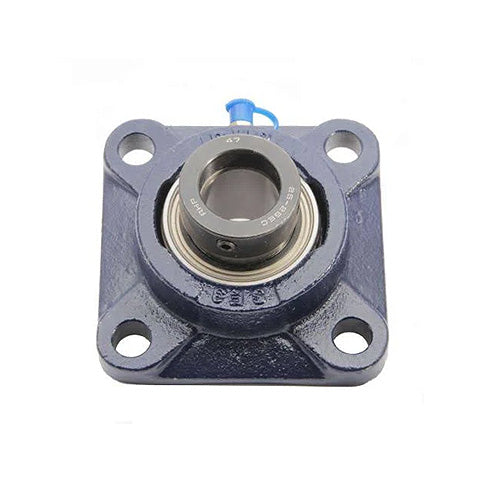

RHP SF2-15/16DEC Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Eccentric Collar Full Width Insert
RHP SF2-15/16DEC Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Eccentric Collar Full Width Insert
Regular price
€372,43
ex VAT
Regular price
Sale price
€372,43
ex VAT
In stock
Price Break
10+
€283,03
20+
€267,13
30+
€263,95
40+
€260,77
50+
€257,59
75+
€254,41
100+
€238,51
200+
€235,33
250+
€232,15
500+
€228,97
1000+
€222,61
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 152.4mm = 6 inch
Technical
Technical
| Bore | 2-15/16 inch |
|---|---|
| L | 7.736 inch |
| H | 6.24 inch |
| J | 6 inch |
| G | 0.75 inch |
| A | 2.02 inch |
| A3 | 3.591 inch |
| A4 | 0.906 inch |
| B3 | 3.611 inch |
| s2 | 1.471 inch |
| d2 | 4 inch |
| Dynamic load Cr | 66000 N |
| Static Load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
