SKU: SF2.1/2DEC-RHP

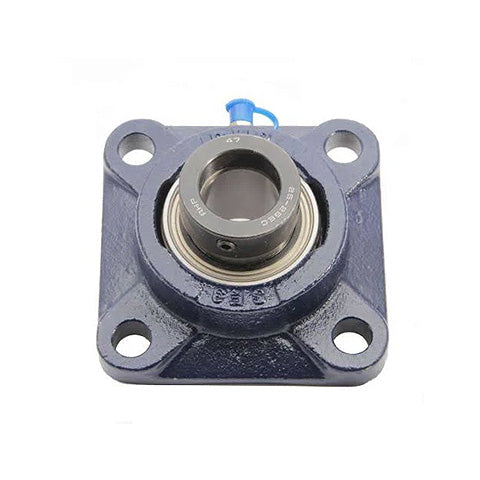

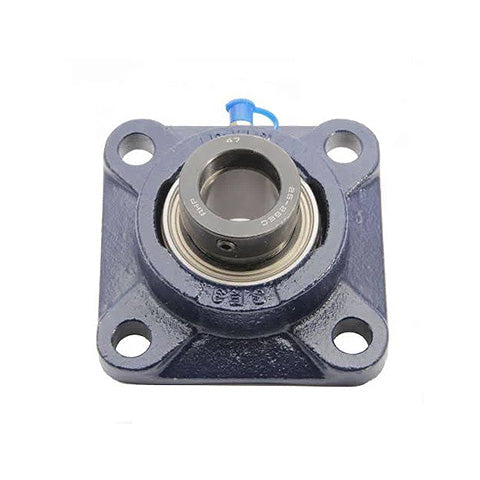

RHP SF2-1/2DEC Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Eccentric Collar Full Width Insert
RHP SF2-1/2DEC Four Bolt Square Cast Iron Flange Housing and 2-1/2 inch Bore Eccentric Collar Full Width Insert
Regular price
€296,81
ex VAT
Regular price
Sale price
€296,81
ex VAT
In stock
Price Break
10+
€225,56
20+
€212,89
30+
€210,36
40+
€207,82
50+
€205,29
75+
€202,75
100+
€190,08
200+
€187,55
250+
€185,01
500+
€182,48
1000+
€177,41
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| L | 6.87 inch |
| H | 5.886 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A3 | 3.18 inch |
| A4 | 0.709 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.438 inch |
| Dynamic load Cr | 57500 N |
| Static Load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1066-2-1/2DECG+insonly">1066-2-1/2DECG Click Here</a> |
| Casting group | 24017 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
