SKU: SF15-RHP

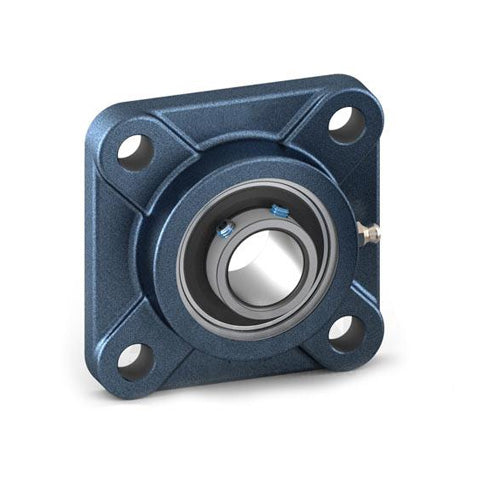

RHP SF15 Four Bolt Square Cast Iron Flange Housing and 15mm Bore Grub Screw Full Width Insert

RHP SF15 Four Bolt Square Cast Iron Flange Housing and 15mm Bore Grub Screw Full Width Insert
Regular price €37,79 ex VAT
Regular price Sale price €37,79 ex VAT
Sale Sold out

In stock

Price Break
10+ €28,72
20+ €27,10
30+ €26,78
40+ €26,46
50+ €26,14
75+ €25,81
100+ €24,20
200+ €23,88
250+ €23,55
500+ €23,23
1000+ €22,59
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 15mm
L 76.2mm
H 52.5mm
J 54mm
G 10mm
A 24.6
A1 32.87mm
A4 9.5mm
B 27.38
s 11.55mm
d1 24.21mm
Dynamic load Cr 9550 N
Static Load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.5 kg
Insert <a href="advanced_search_result.php?keywords=1017-15G+insonly">1017-15G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
