SKU: SF1.7/16-RHP

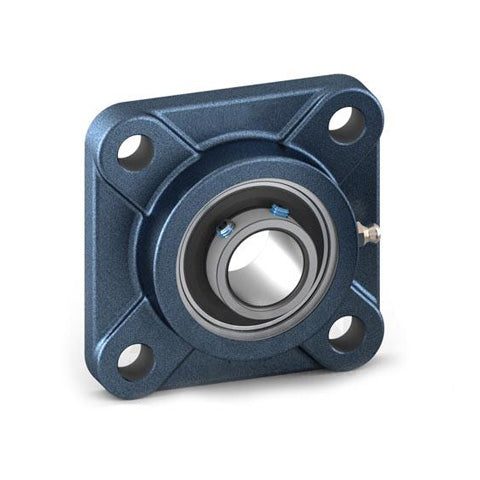

RHP SF1-7/16 Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Grub Screw Full Width Insert

RHP SF1-7/16 Four Bolt Square Cast Iron Flange Housing and 1-7/16 inch Bore Grub Screw Full Width Insert
Regular price €65,82 ex VAT
Regular price Sale price €65,82 ex VAT
Sale Sold out

In stock

Price Break
10+ €50,02
20+ €47,21
30+ €46,65
40+ €46,08
50+ €45,52
75+ €44,96
100+ €42,15
200+ €41,59
250+ €41,03
500+ €40,46
1000+ €39,34
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-7/16 inch
L 4.626 inch
H 3.752 inch
J 3.622 inch
G 0.5 inch
A 1.236
A1 1.827 inch
A4 0.5 inch
B 1.688
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static Load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.7 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
