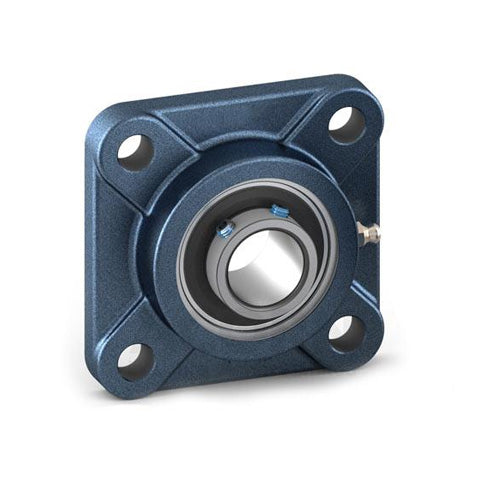

RHP SF1-1/4R Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Full Width Insert

RHP SF1-1/4R Four Bolt Square Cast Iron Flange Housing and 1-1/4 inch Bore Grub Screw Full Width Insert
Regular price €56,57 ex VAT
Regular price Sale price €56,57 ex VAT
Sale Sold out

In stock

Price Break
10+ €42,98
20+ €40,57
30+ €40,09
40+ €39,60
50+ €39,12
75+ €38,64
100+ €36,22
200+ €35,74
250+ €35,26
500+ €34,77
1000+ €33,81
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.252 inch
H 3.252 inch
J 3.248 inch
G 0.4375 inch
A 1.173
A1 1.662 inch
A4 0.5 inch
B 1.5
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static Load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.3 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
