SKU: SF1.1/2DEC-RHP

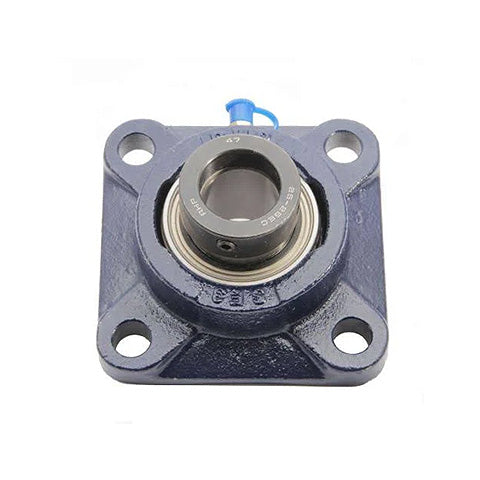

RHP SF1-1/2DEC Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Eccentric Collar Full Width Insert
RHP SF1-1/2DEC Four Bolt Square Cast Iron Flange Housing and 1-1/2 inch Bore Eccentric Collar Full Width Insert
Regular price
€90,38
ex VAT
Regular price
Sale price
€90,38
ex VAT
In stock
Price Break
10+
€68,68
20+
€64,83
30+
€64,05
40+
€63,28
50+
€62,51
75+
€61,74
100+
€57,88
200+
€57,11
250+
€56,34
500+
€55,57
1000+
€54,02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SF
- Bolt Hole Centres:
- 101.5mm = 3.996 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.126 inch |
| H | 4000 inch |
| J | 3.996 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A3 | 2.319 inch |
| A4 | 0.5 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.374 inch |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
