SKU: SER.211

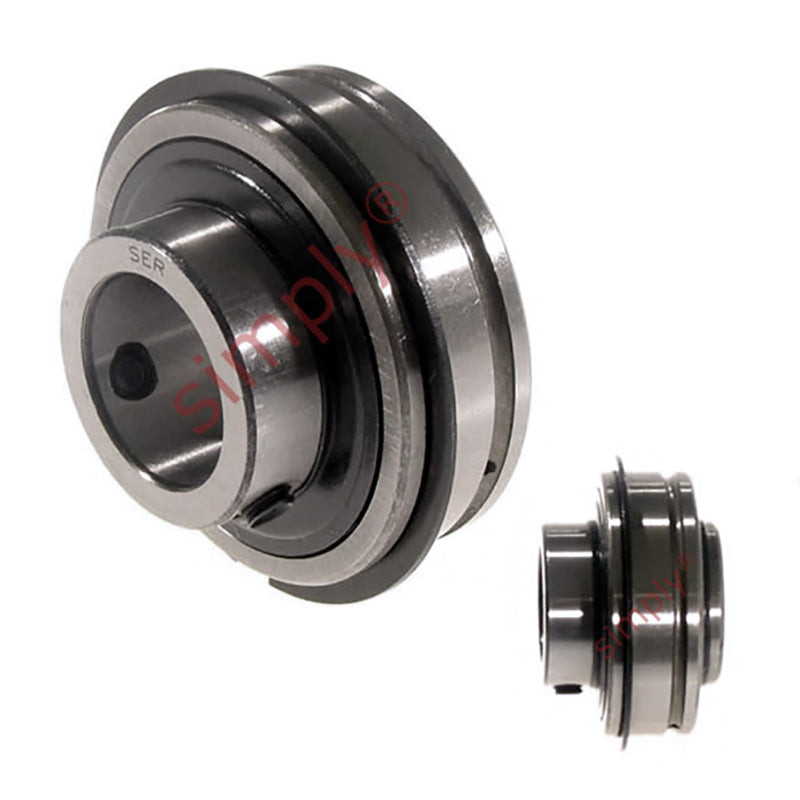

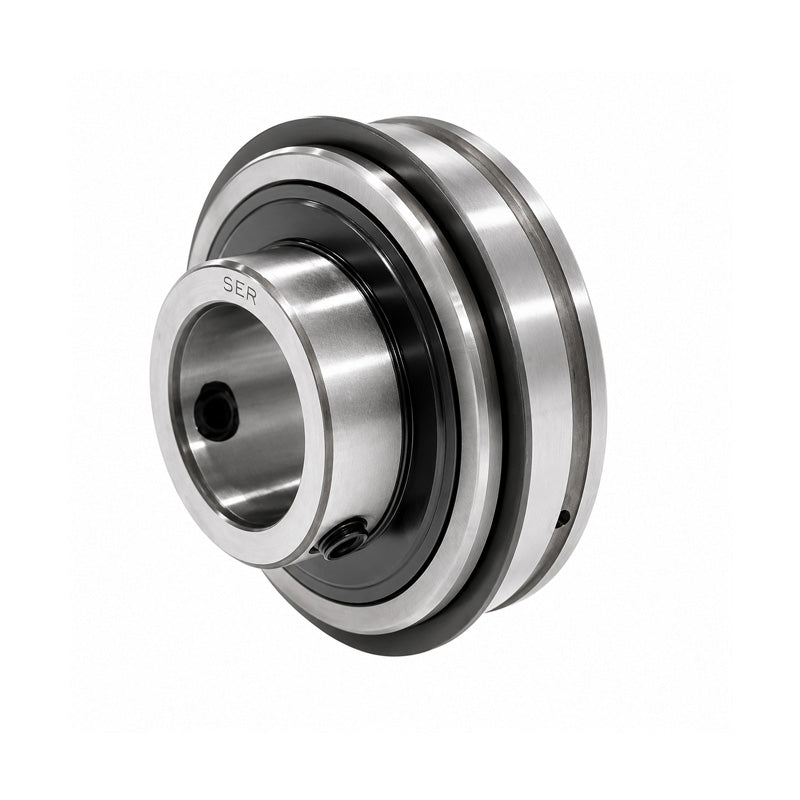

SER211 Metric Bearing Insert and Snap Ring 55mm Bore 100mm Outside Dia
- Regular price
- €36,48 ex VAT
- Sale price
- €36,48
- Regular price
-
In stock
Quantity Price Breaks
3
€32,47
4
€30,64
9
€30,28
19
€29,91
49
€29,55
99
€29,18
499
€27,36
999
€27,00
1999
€26,63
2999
€26,27
4999
€25,54
SKU:
SER.211
SER211 Metric Bearing Insert and Snap Ring 55mm Bore 100mm Outside Dia
- Regular price
- €36,48 ex VAT
- Sale price
- €36,48
- Regular price
-
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 55mm |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 30.2mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| E | = | 24.22mm |
| a | = | 2.41mm |
| h | = | 7.5mm |
| R | = | 9.12mm |
| J | = | 3.28mm |
| P | = | 106.5mm |
| G | = | 9.5mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.28 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
