SKU: SCHB25-RHP

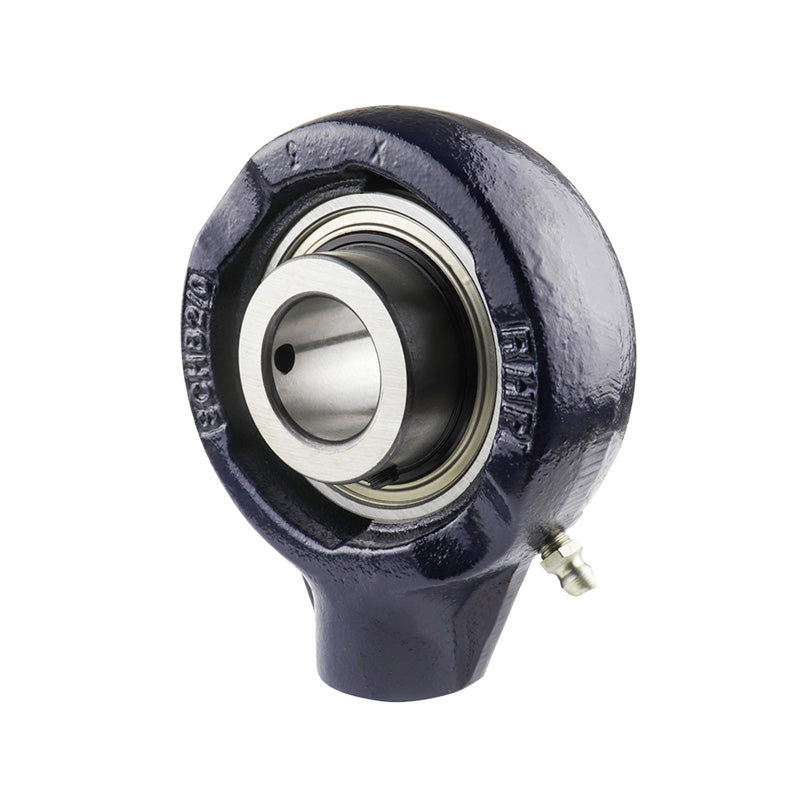

RHP SCHB25 BSP Thread Cast Iron Hanger Bearing Unit and 25mm Bore Insert 89mm Outside Diameter

RHP SCHB25 BSP Thread Cast Iron Hanger Bearing Unit and 25mm Bore Insert 89mm Outside Diameter
Regular price €70,37 ex VAT
Regular price Sale price €70,37 ex VAT
Sale Sold out

In stock

Price Break
10+ €53,48
20+ €50,47
30+ €49,87
40+ €49,27
50+ €48,67
75+ €48,07
100+ €45,07
200+ €44,47
250+ €43,86
500+ €43,26
1000+ €42,06
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

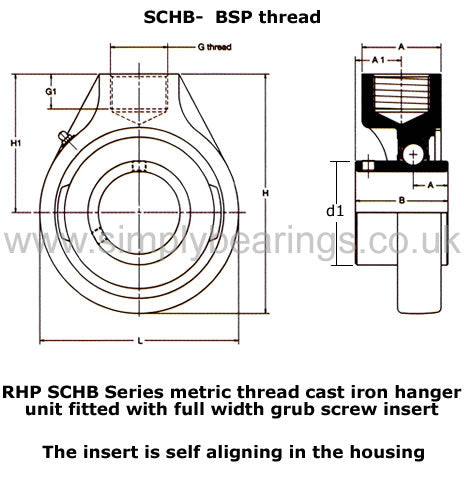

Technical
Bore 25mm
G1 16mm
L 89mm
H 107.5mm
H1 61.9mm
Threads 1/2 BSP
A 33.5mm
A1 22.22mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
