SKU: SCH1.1/2-RHP
RHP SCH1-1/2 Metric Thread Cast Iron Hanger Bearing Unit and 1-1/2 inch Bore Insert 107mm Outside Diameter
RHP SCH1-1/2 Metric Thread Cast Iron Hanger Bearing Unit and 1-1/2 inch Bore Insert 107mm Outside Diameter
Regular price
€108,79
ex VAT
Regular price
Sale price
€108,79
ex VAT
In stock
Price Break
10+
€82,67
20+
€78,03
30+
€77,10
40+
€76,17
50+
€75,24
75+
€74,31
100+
€69,67
200+
€68,74
250+
€67,81
500+
€66,88
1000+
€65,02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

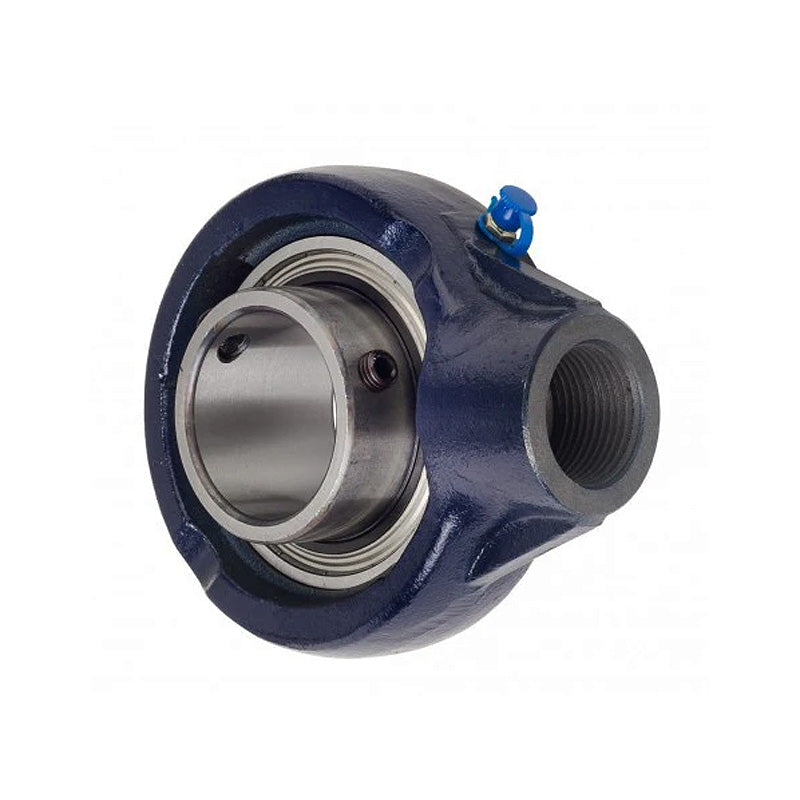

RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 107mm
- Style:
- SCH

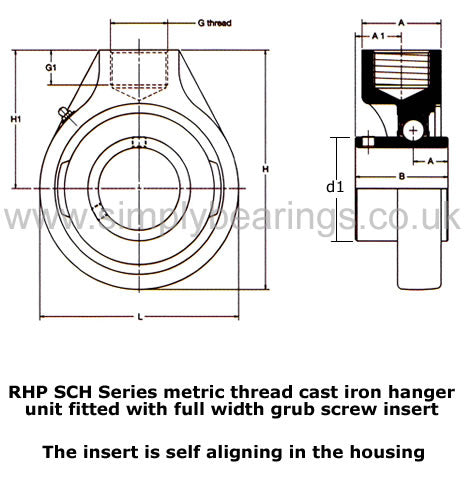

Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| G1 | 0.748 inch |
| L | 4.213 inch |
| H | 5.02 inch |
| H1 | 2.874 inch |
| Threads | M24X3 Metric |
| A | 1.555 inch |
| A1 | 1.094 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
