SKU: SCC8M2840X62
ContiTech SCC8M2840X62 Synchrochain Carbon Timing Belt 62mm Width 2840mm Length 355 Teeth
- Regular price
- €612,99 ex VAT
- Sale price
- €612,99
- Regular price
-
Quantity Price Breaks
ContiTech SCC8M2840X62 Synchrochain Carbon Timing Belt 62mm Width 2840mm Length 355 Teeth
- Regular price
- €612,99 ex VAT
- Sale price
- €612,99
- Regular price
-
Description
Carbon Synchrochain Timing Belts: These timing belts are high-performance timing belts engineered for demanding applications, withstanding temperatures from -40°C to +80°C and resisting oils, grease, and tropical climates. Their high-tensile carbon tension members provide exceptional stability, allowing them to handle maximum torques with minimal stretch and initial tension loss. Offering up to 30% higher power output and double the service life of traditional belts, it is ideal for various engineering fields. The belt's intelligent design ensures smooth, reliable power transmission and allows for up to 80% reduction in width while maintaining power output, reducing system costs and enhancing efficiency.
Benefits: Maintenance-free, withstands reverse flexing, resistant to various chemicals and oils
Technical
| Number of Teeth | = | 355 |
| Belt Length | = | 2840mm |
| Belt Width | = | 62mm |

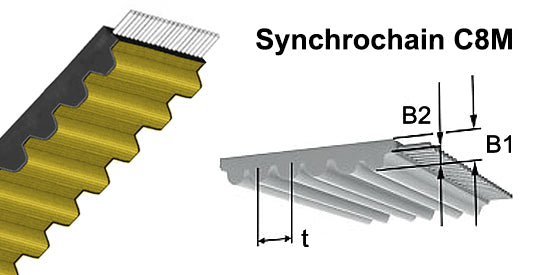

| Tooth Pitch t | = | 8mm |
| Belt Depth B1 | = | 5.6mm |
| Belt Depth B2 | = | 3.4mm |
| Temperature Range | = | -40 to 80 Deg C |
| Dynamic Stressing Range | = | Up to 40 m/s |
| Permissible Peripheral Force for Dynamic Applications | = | 12350 N |
| Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) | = | 16100 N |
| Weight Kg | = | 0.862 kg |
