SKU: SCC14M3500X125

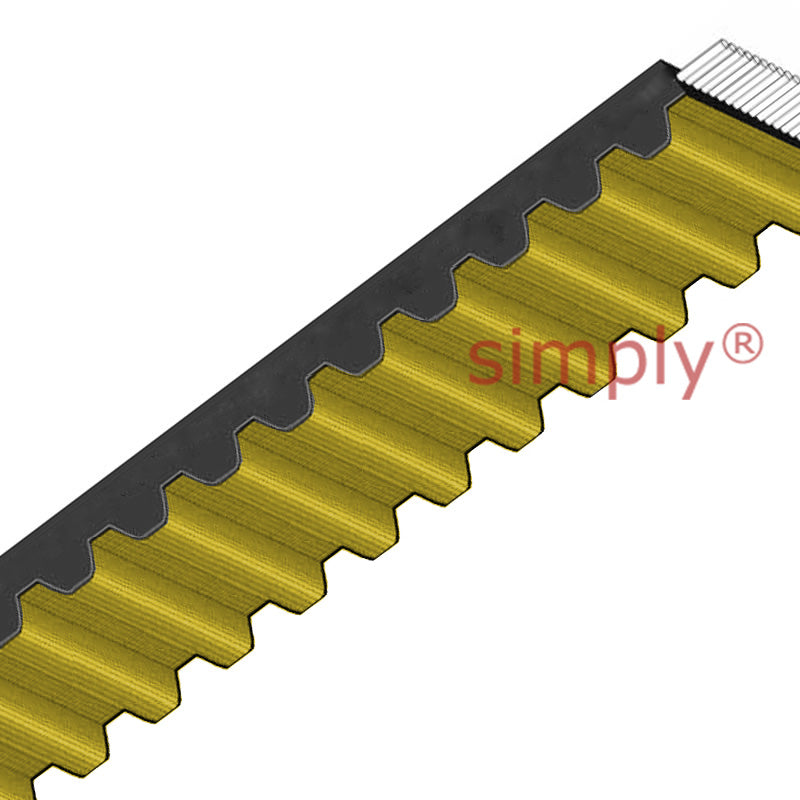

ContiTech SCC14M3500X125 Synchrochain Carbon Timing Belt 125mm Width 3500mm Length 250 Teeth

Name: ContiTech SCC14M3500X125 Synchrochain Carbon Timing Belt 125mm Width 3500mm Length 250 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SCC14M3500X125
Price: 3017.82 EUR
Availability: InStock

€3.017,82 ex VAT

Sale Sold out

In stock

Price Break

3+ €2.293,40

5+ €2.164,56

9+ €2.138,79

19+ €2.113,02

49+ €2.087,26

74+ €2.061,49

99+ €1.932,64

199+ €1.906,88

249+ €1.881,11

499+ €1.855,34

999+ €1.803,80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

B8HVXKIRPM

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 125mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 3500mm
Number of Teeth:: 250

Technical

Number of Teeth	250
Belt Length	3500mm
Belt Width	125mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	33600 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	44000 N
Weight Kg	3.417 kg
