SKU: SAKB18F-SKF

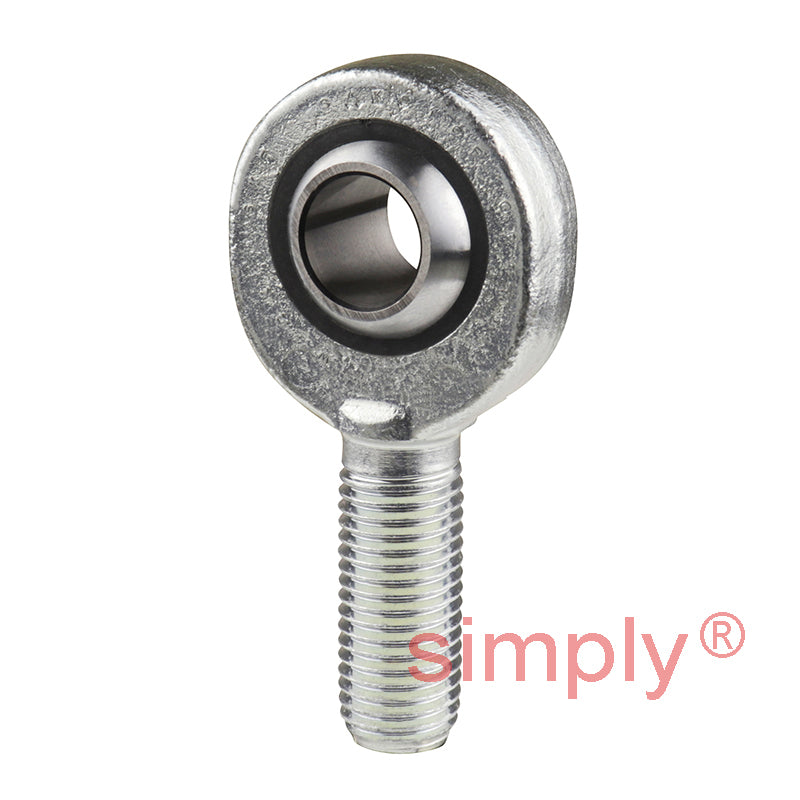

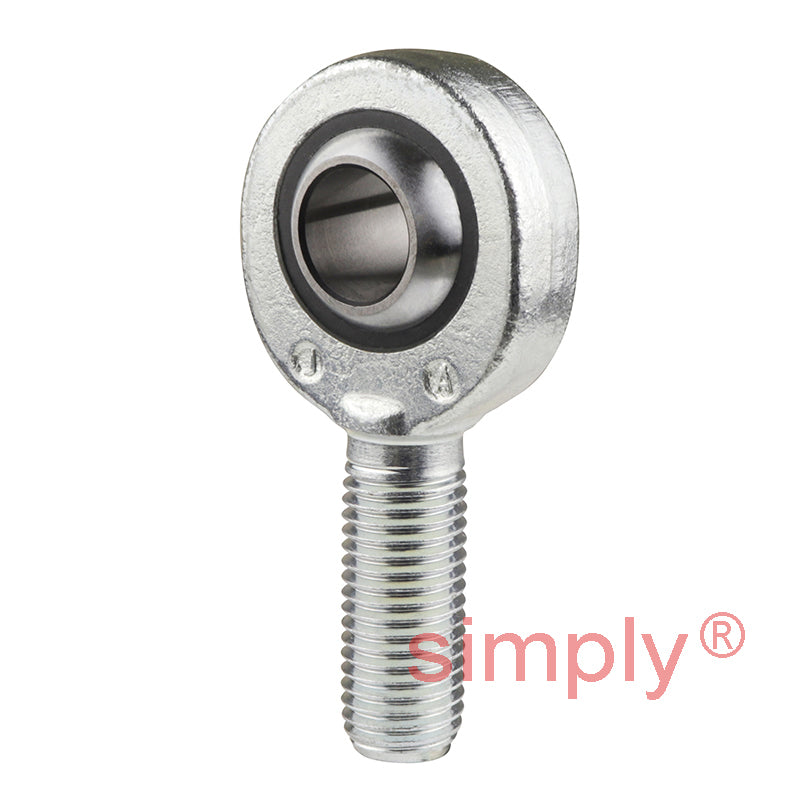

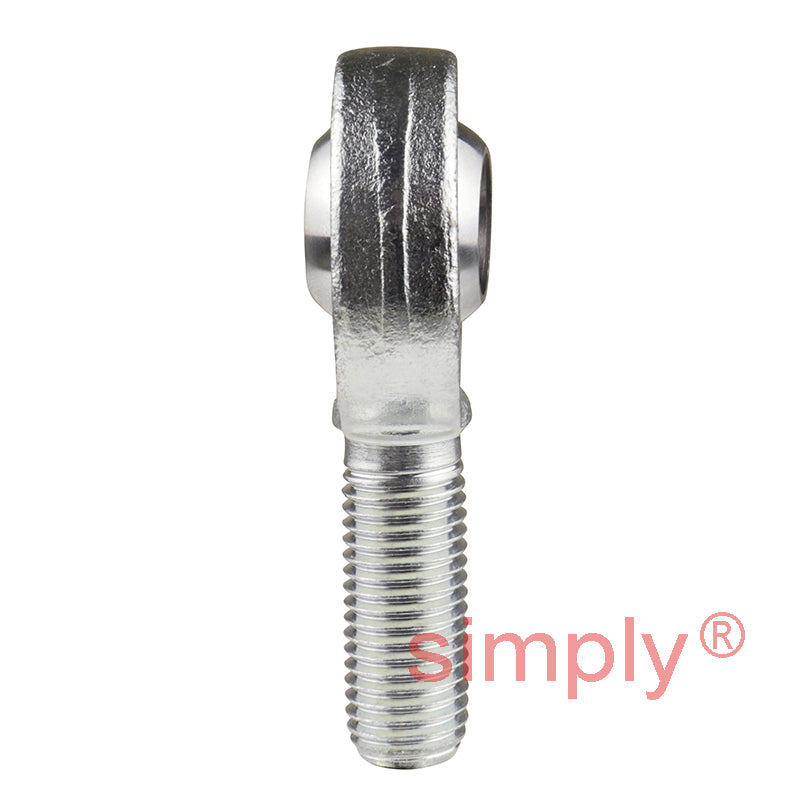

SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- €132,98 ex VAT
- Sale price
- €132,98
- Regular price
-
In stock
Quantity Price Breaks
10+
€118,35
19+
€111,70
29+
€110,37
39+
€109,04
49+
€107,71
74+
€106,38
99+
€99,74
199+
€98,41
249+
€97,08
499+
€95,75
999+
€93,09
SKU:
SAKB18F-SKF
SKF SAKB18F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
- Regular price
- €132,98 ex VAT
- Sale price
- €132,98
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
