SKU: RCK50-40x45

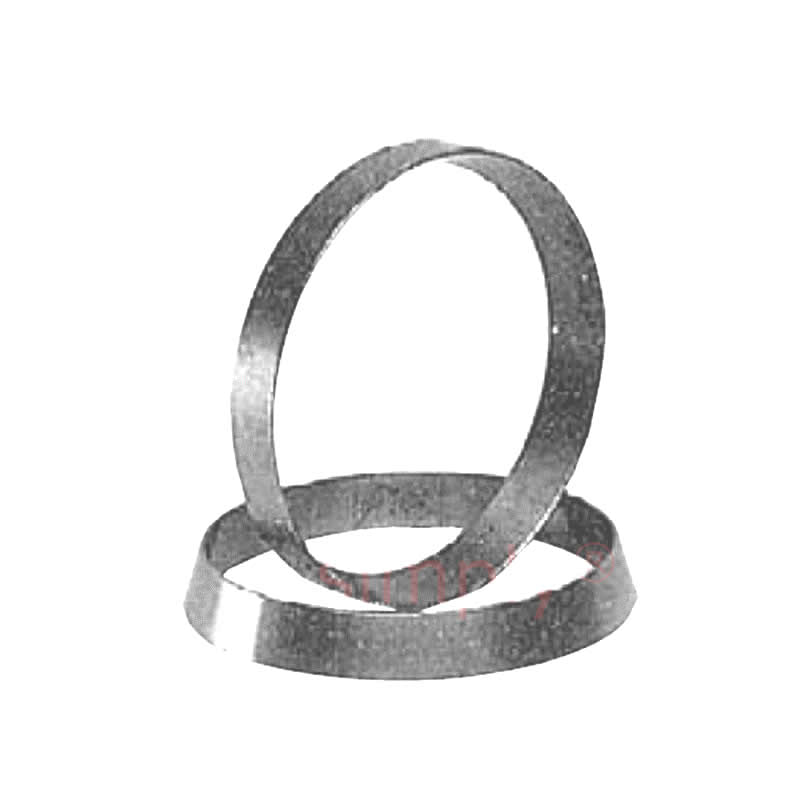

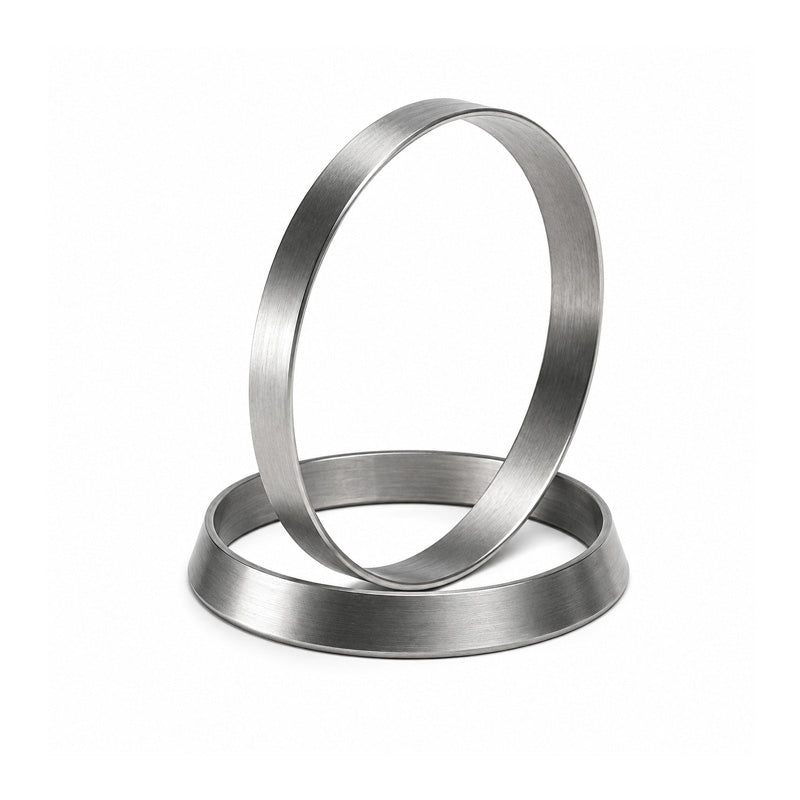

RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
- Regular price
- €5,06 ex VAT
- Sale price
- €5,06
- Regular price
-
In stock
Quantity Price Breaks
10
€4,50
20
€4,25
30
€4,20
50
€4,15
75
€4,10
100
€4,05
200
€3,80
250
€3,74
500
€3,69
1000
€3,64
SKU:
RCK50-40x45
RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
- Regular price
- €5,06 ex VAT
- Sale price
- €5,06
- Regular price
-

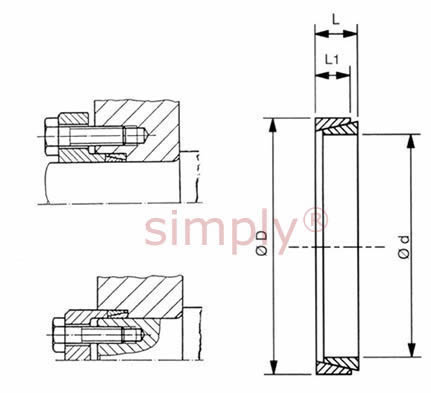

Technical
| d | = | 40mm |
| D | = | 45mm |
| L | = | 8mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 6.6mm | |
| Torque Cap. M Nm | = | 231 |
| Axial Force F kN | = | 0.8 |
| Shaft Ps N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 115 | |
| Hub Ph N/mm< | = | sup> |
| 2< | = | /sup> |
| = | 105 | |
| Axial Force to Clamp kN | = | 66 |
| Kg | = | 23 |
| Min. Hub Dia. Assy. A | = | 63.3 |
| Min. Hub Dia. Assy. B | = | 58.9 |
| Min. Hub Dia. Assy. C | = | 55 |
