Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days
Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days
Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days
Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days

SKU: RAXZ570-MB

Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days

€1.078,12 ex VAT
€1.078,12
ex VAT
Not in stock

Quantity Price Breaks

10 €959,53
19 €905,62
29 €894,84
39 €884,06
49 €873,28
74 €862,50
99 €808,59
199 €797,81
249 €787,03
499 €776,25
999 €754,68
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days
Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days
SKU: RAXZ570-MB

Major Brand RAXZ 570 Combined Bearing with Incorporated Thrust Plate 70x85x36mm Allow 2-3 Days

€1.078,12 ex VAT
€1.078,12
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

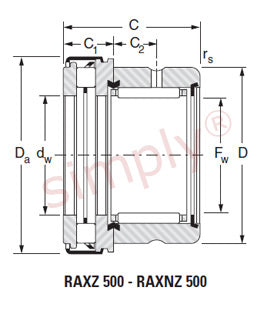

Technical

Fw = 70mm
D = 85mm
C = 36mm
da = 70mm
Da = 96mm
C1 = 15mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = kN
Radial static load = kN
Axial dynamic load = kN
Axial static load = kN
Speed rating = rpm
Weight = kg
