Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

€872,31 ex VAT
€872,31
ex VAT
Not in stock

Quantity Price Breaks

10 €776,36
19 €732,74
29 €724,02
39 €715,29
49 €706,57
74 €697,85
99 €654,23
199 €645,51
249 €636,79
499 €628,06
999 €610,62
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

€872,31 ex VAT
€872,31
ex VAT

Description

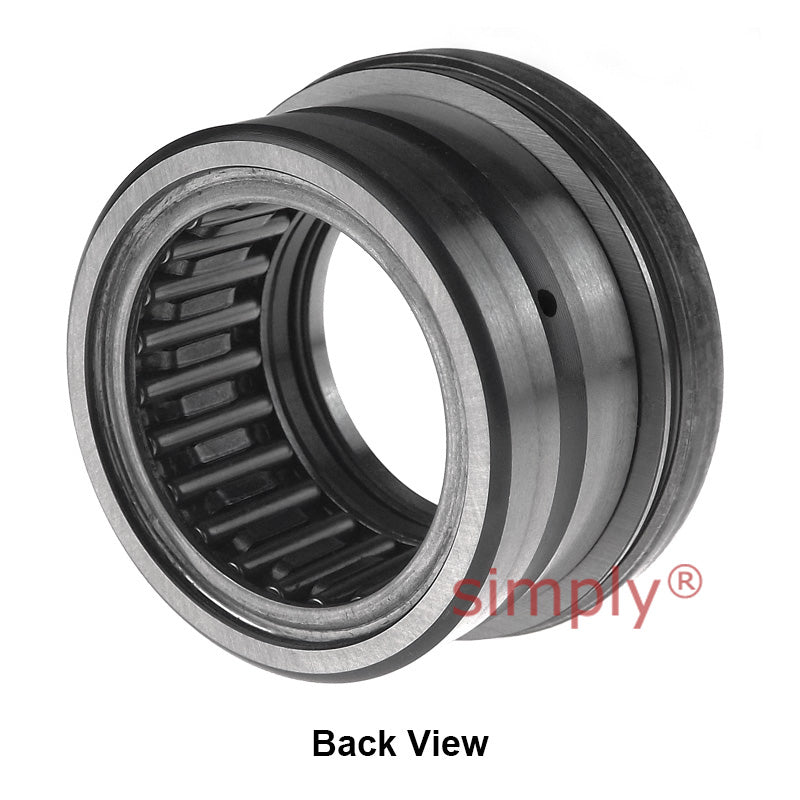

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

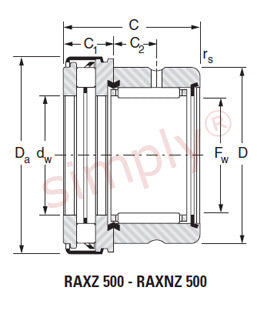

Technical

Fw = 60mm
D = 72mm
C = 36mm
da = 60mm
Da = 86mm
C1 = 15mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = 31.9 kN
Radial static load = 78.1 kN
Axial dynamic load = 71 kN
Axial static load = 255 kN
Speed rating = 3.5 rpm
Weight = 0.423 kg
