Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days

SKU: RAXPZ445-MB

Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days

€364,97 ex VAT
€364,97
ex VAT
Not in stock

Quantity Price Breaks

10 €324,82
19 €306,57
29 €302,93
39 €299,28
49 €295,63
74 €291,98
99 €273,73
199 €270,08
249 €266,43
499 €262,78
999 €255,48
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days
SKU: RAXPZ445-MB

Major Brand RAXPZ 445 Combined Bearing with Incorporated Thrust Plate 45x58x27mm Allow 2-3 Days

€364,97 ex VAT
€364,97
ex VAT

Description

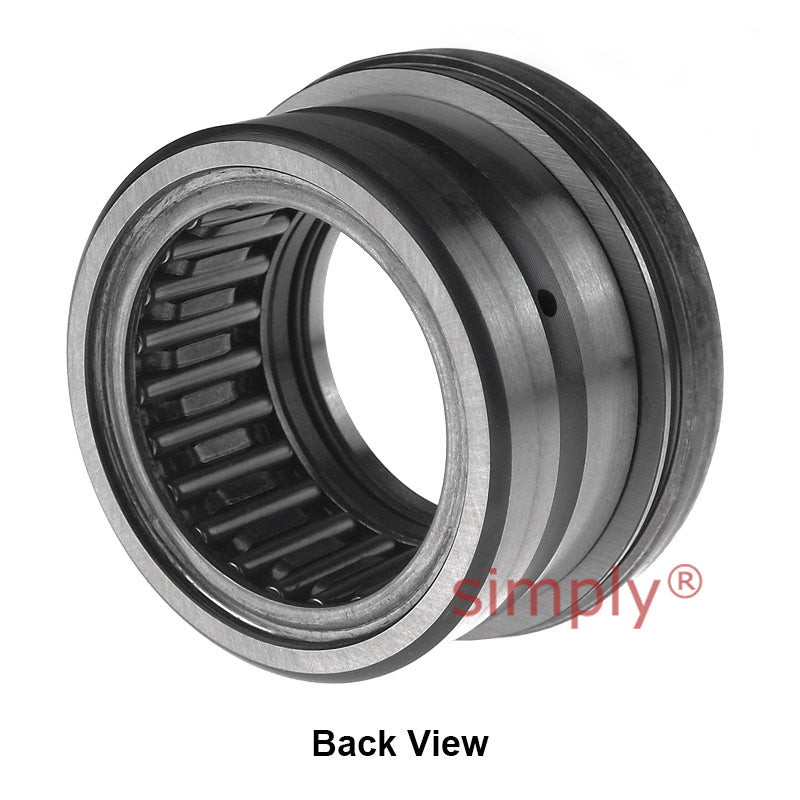

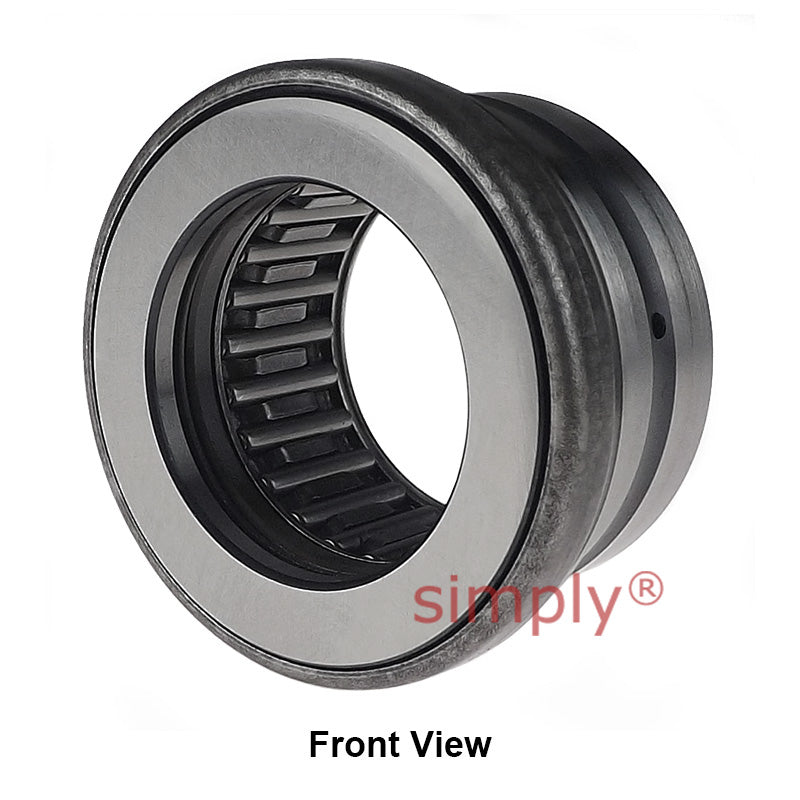

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 45mm
D = 58mm
C = 27mm
da = 45mm
Da = 66mm
C1 = 9mm
C2 = 9mm
rs min = 0.85mm
Radial dynamic load = 24.9 kN
Radial static load = 51.8 kN
Axial dynamic load = 21.8 kN
Axial static load = 109 kN
Speed rating = 4.5 rpm
Weight = 0.216 kg
