SKU: RAXPZ430-MB
Major Brand RAXPZ 430 Combined Bearing with Incorporated Thrust Plate 30x42x27mm
- Regular price
- €330,15 ex VAT
- Sale price
- €330,15
- Regular price
-
In stock
Quantity Price Breaks
10
€293,83
19
€277,33
29
€274,02
39
€270,72
49
€267,42
74
€264,12
99
€247,61
199
€244,31
249
€241,01
499
€237,71
999
€231,11
SKU:
RAXPZ430-MB
Major Brand RAXPZ 430 Combined Bearing with Incorporated Thrust Plate 30x42x27mm
- Regular price
- €330,15 ex VAT
- Sale price
- €330,15
- Regular price
-
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |

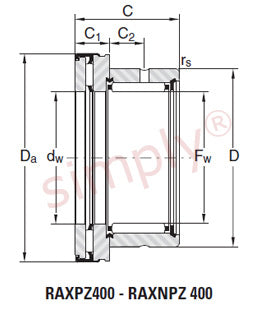

Technical
| Fw | = | 30mm |
| D | = | 42mm |
| C | = | 27mm |
| da | = | 30mm |
| Da | = | 48mm |
| C1 | = | 9mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 20.2 kN |
| Radial static load | = | 34.6 kN |
| Axial dynamic load | = | 14.5 kN |
| Axial static load | = | 57 kN |
| Speed rating | = | 6.5 rpm |
| Weight | = | 0.133 kg |
