SKU: RAX735-MB

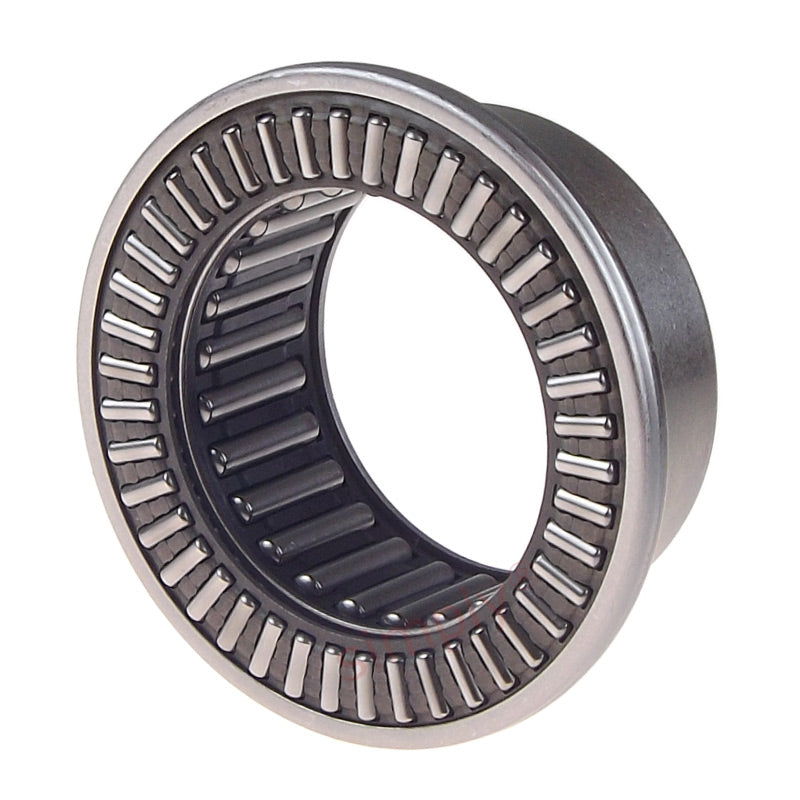

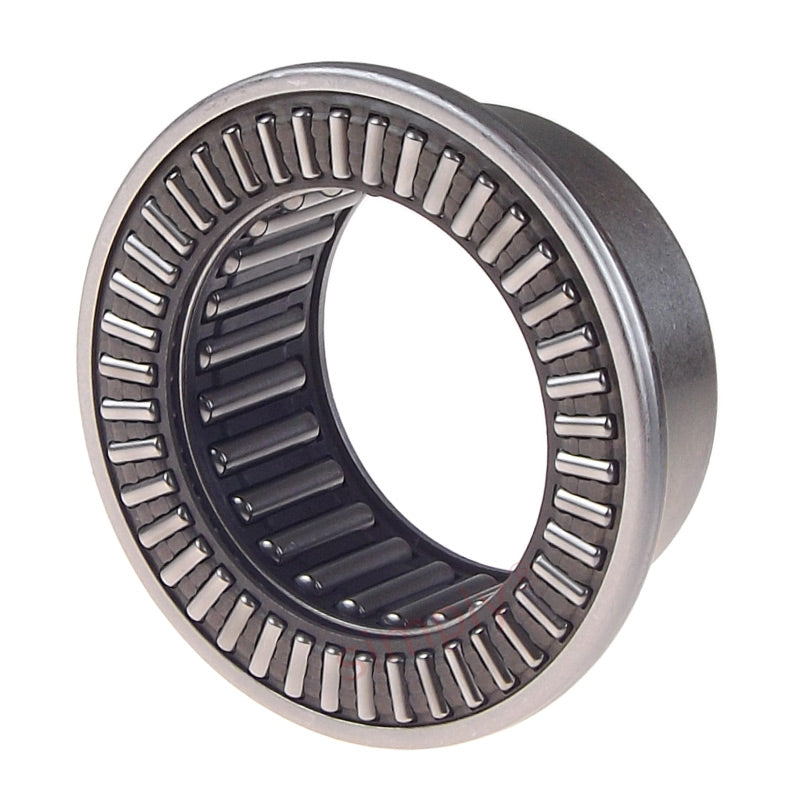

Major Brand RAX 735 Open Needle Thrust Bearing 35x43x22.2mm
- Regular price
- €53,74 ex VAT
- Sale price
- €53,74
- Regular price
-
In stock
Quantity Price Breaks
10
€47,83
19
€45,14
29
€44,60
39
€44,07
49
€43,53
74
€42,99
99
€40,31
199
€39,77
249
€39,23
499
€38,69
999
€37,62
SKU:
RAX735-MB
Major Brand RAX 735 Open Needle Thrust Bearing 35x43x22.2mm
- Regular price
- €53,74 ex VAT
- Sale price
- €53,74
- Regular price
-
Description
Nadella Combined Needle Roller Bearings : Combined bearings type RAX possess a one piece outer ring formed from thin sheet steel accurately controlled and hardened by suitable heat treatment. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing. |
Technical
| Fw | = | 35mm |
| D | = | 43mm |
| C | = | 22.2mm |
| Da | = | 56.5mm |
| Eb | = | 39mm |
| Ea | = | 50.9mm |
| C1 | = | 4.2mm |
| L | = | 21.2 |
| Radial dynamic load | = | 24.5 |
| Radial static load | = | 45 kN |
| Axial dynamic load | = | 19.4 kN |
| Axial static load | = | 88 kN |
| Limit loads radial | = | 14.3 kN |
| Limit loads axial | = | 27 kN |
| Speed rating | = | 5500 rpm |
| Housing | = | 43mm |
| GO plug-gauges | = | 35.015mm |
| NO-GO plug-gauges | = | 35.041mm |
| Inner ring | = | JR 30x35x20.5 |
| Weight | = | 0.075 kg |
