SKU: RAX515-MB

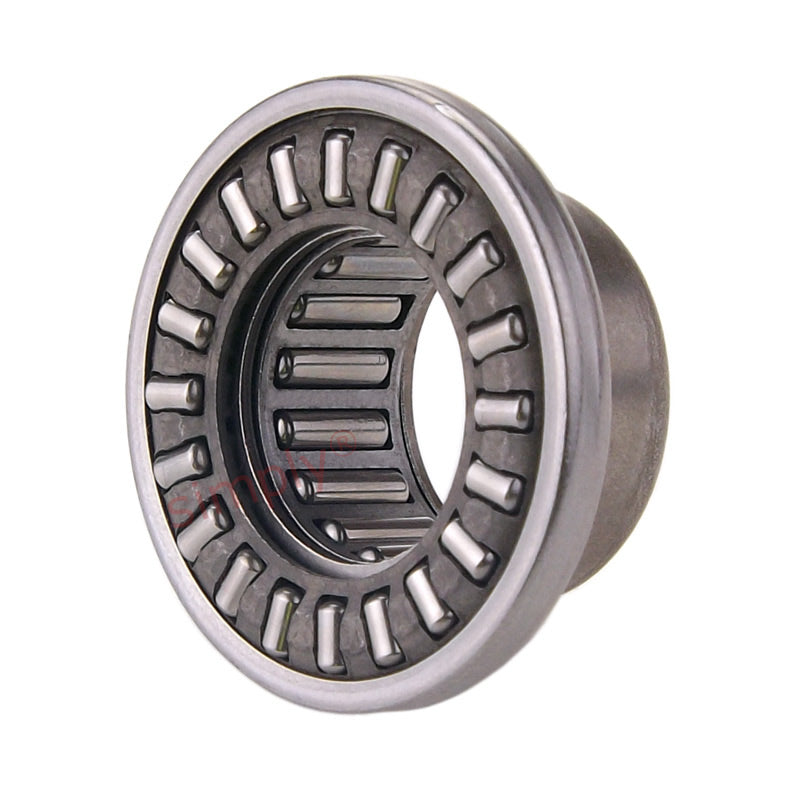

Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
- Regular price
- €297,57 ex VAT
- Sale price
- €297,57
- Regular price
-
Not in stock
Quantity Price Breaks
10
€264,84
19
€249,96
29
€246,98
39
€244,01
49
€241,03
74
€238,06
99
€223,18
199
€220,20
249
€217,23
499
€214,25
999
€208,30
SKU:
RAX515-MB
Major Brand RAX 515 Needle Combined Bearing with Needle Thrust Cage 15x24x20mm Allow 2-3 Days
- Regular price
- €297,57 ex VAT
- Sale price
- €297,57
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 15mm |
| C | = | 20mm |
| D | = | 24mm |
| Da | = | 28mm |
| Eb | = | 16.8mm |
| Ea | = | 24.9mm |
| C1 | = | 6mm |
| C2 | = | 6mm |
| rs min | = | 0.35mm |
| Radial dynamic load | = | 9.66 kN |
| Radial static load | = | 12.6 kN |
| Axial dynamic load | = | 14 kN |
| Axial static load | = | 34 kN |
| Speed rating | = | 11500 rpm |
| Inner ring | = | JR 12x15x16 kN |
| Weight | = | 0.036 kg |
