SKU: RAX460-MB

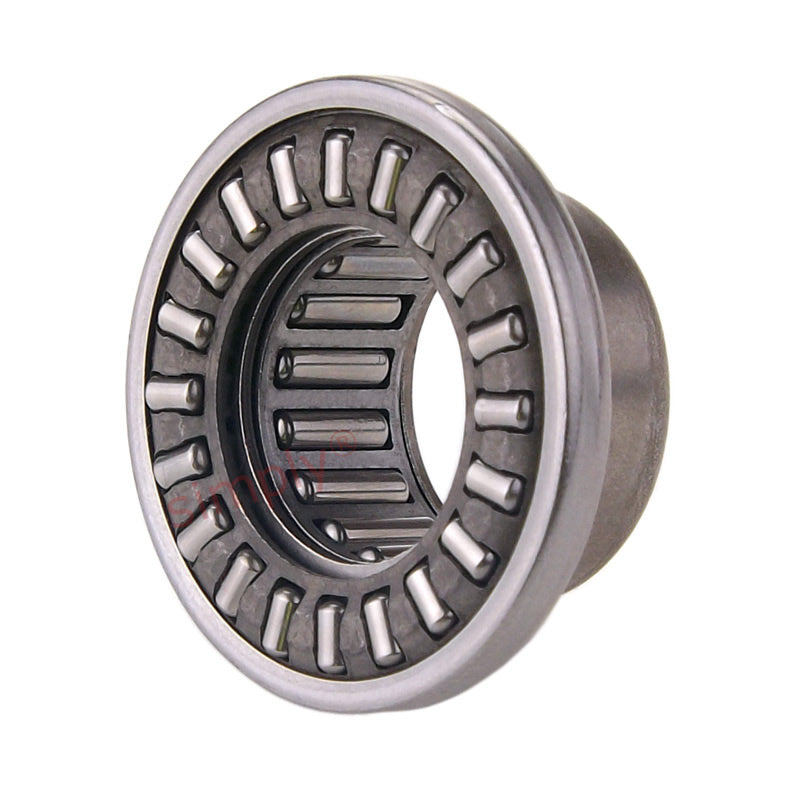

Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
- Regular price
- €588,67 ex VAT
- Sale price
- €588,67
- Regular price
-
Not in stock
Quantity Price Breaks
10
€523,92
19
€494,48
29
€488,60
39
€482,71
49
€476,82
74
€470,94
99
€441,50
199
€435,62
249
€429,73
499
€423,84
999
€412,07
SKU:
RAX460-MB
Major Brand RAX 460 Needle Combined Bearing with Needle Thrust Cage 60x72x28mm Allow 2-3 Days
- Regular price
- €588,67 ex VAT
- Sale price
- €588,67
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 60mm |
| C | = | 28mm |
| D | = | 72mm |
| Da | = | 85mm |
| Eb | = | 63.5mm |
| Ea | = | 79.2mm |
| C1 | = | 7mm |
| C2 | = | 11mm |
| rs min | = | 1.3mm |
| Radial dynamic load | = | 31.9 kN |
| Radial static load | = | 78.1 kN |
| Axial dynamic load | = | 31.5 kN |
| Axial static load | = | 193 kN |
| Speed rating | = | 3500 rpm |
| Inner ring | = | JR 55x60x25 kN |
| Weight | = | 0.282 kg |
