SKU: RAX450-MB

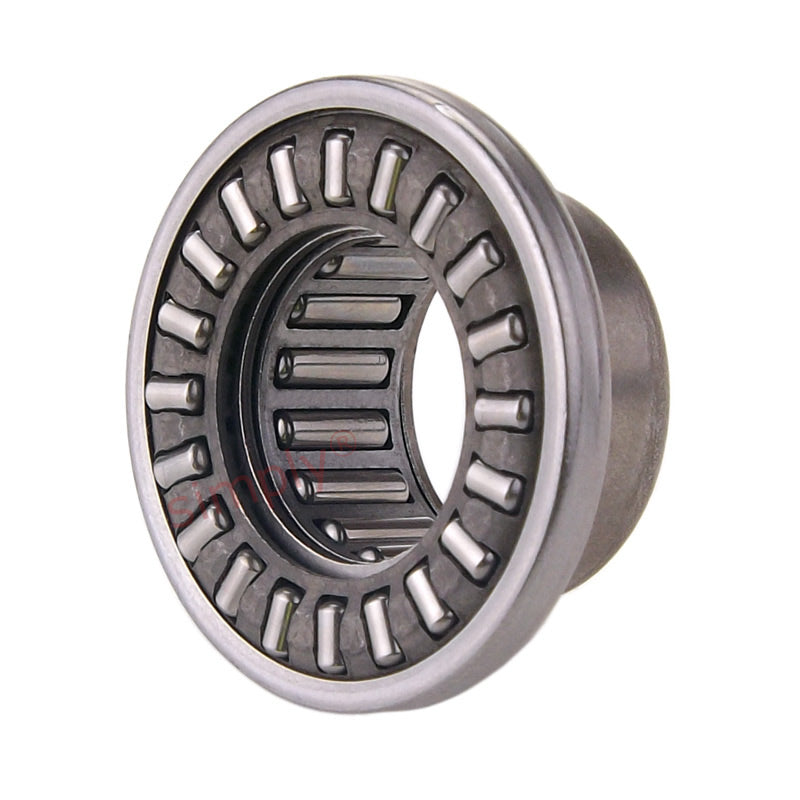

Major Brand RAX 450 Needle Combined Bearing With Needle Thrust Cage 50x62x27mm
- Regular price
- €339,19 ex VAT
- Sale price
- €339,19
- Regular price
-
In stock
Quantity Price Breaks
10
€301,88
19
€284,92
29
€281,53
39
€278,14
49
€274,74
74
€271,35
99
€254,39
199
€251,00
249
€247,61
499
€244,22
999
€237,43
SKU:
RAX450-MB
Major Brand RAX 450 Needle Combined Bearing With Needle Thrust Cage 50x62x27mm
- Regular price
- €339,19 ex VAT
- Sale price
- €339,19
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 50mm |
| C | = | 27mm |
| D | = | 62mm |
| Da | = | 70mm |
| Eb | = | 53.3mm |
| Ea | = | 65.7mm |
| C1 | = | 6mm |
| C2 | = | 11mm |
| rs min | = | 1.3mm |
| Radial dynamic load | = | 30.2 kN |
| Radial static load | = | 68.5 kN |
| Axial dynamic load | = | 22.5 kN |
| Axial static load | = | 118 kN |
| Speed rating | = | 4000 rpm |
| Inner ring | = | JR 45x50x25 kN |
| Weight | = | 0.205 kg |
