SKU: RAX445-MB

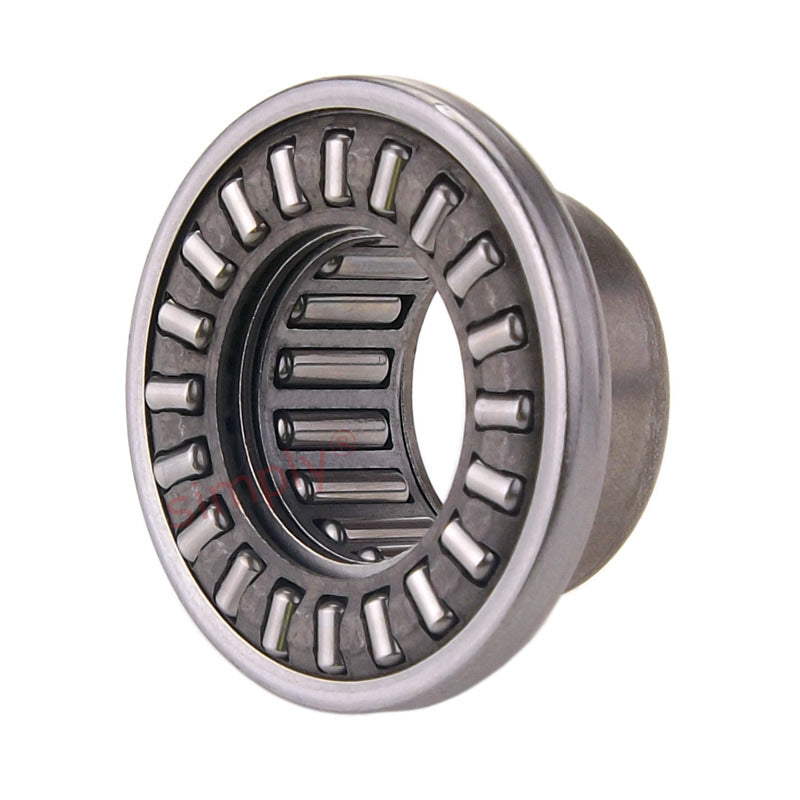

Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
- Regular price
- €296,26 ex VAT
- Sale price
- €296,26
- Regular price
-
In stock
Quantity Price Breaks
10
€263,67
19
€248,86
29
€245,90
39
€242,93
49
€239,97
74
€237,01
99
€222,20
199
€219,23
249
€216,27
499
€213,31
999
€207,38
SKU:
RAX445-MB
Major Brand RAX 445 Needle Combined Bearing With Needle Thrust Cage 45x58x24mm
- Regular price
- €296,26 ex VAT
- Sale price
- €296,26
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |

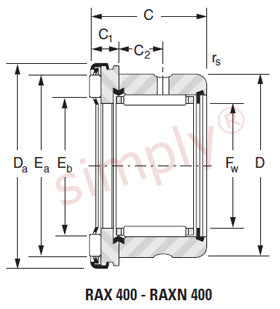

Technical
| Fw | = | 45mm |
| C | = | 24mm |
| D | = | 58mm |
| Da | = | 65mm |
| Eb | = | 48mm |
| Ea | = | 59.9mm |
| C1 | = | 6mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 24.9 kN |
| Radial static load | = | 51.8 kN |
| Axial dynamic load | = | 21.8 kN |
| Axial static load | = | 109 kN |
| Speed rating | = | 4500 rpm |
| Inner ring | = | JR 40x45x20 kN |
| Weight | = | 0.179 kg |
