SKU: RAX440-MB

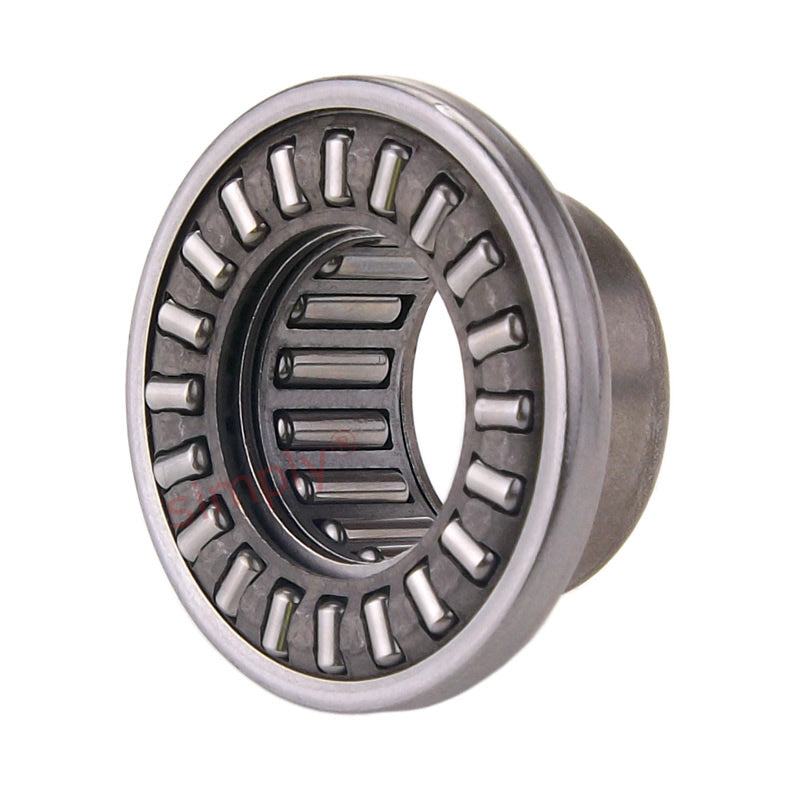

Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
- Regular price
- €254,26 ex VAT
- Sale price
- €254,26
- Regular price
-
Not in stock
Quantity Price Breaks
10
€226,29
19
€213,58
29
€211,04
39
€208,49
49
€205,95
74
€203,41
99
€190,70
199
€188,15
249
€185,61
499
€183,07
999
€177,98
SKU:
RAX440-MB
Major Brand RAX 440 Needle Combined Bearing with Needle Thrust Cage 40x52x24mm Allow 2-3 Days
- Regular price
- €254,26 ex VAT
- Sale price
- €254,26
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 40mm |
| C | = | 24mm |
| D | = | 52mm |
| Da | = | 60mm |
| Eb | = | 43mm |
| Ea | = | 54.9mm |
| C1 | = | 6mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 23.8 kN |
| Radial static load | = | 47 kN |
| Axial dynamic load | = | 20.4 kN |
| Axial static load | = | 96 kN |
| Speed rating | = | 5000 rpm |
| Inner ring | = | JR 35x40x20 kN |
| Weight | = | 0.15 kg |
