SKU: RAX425-MB

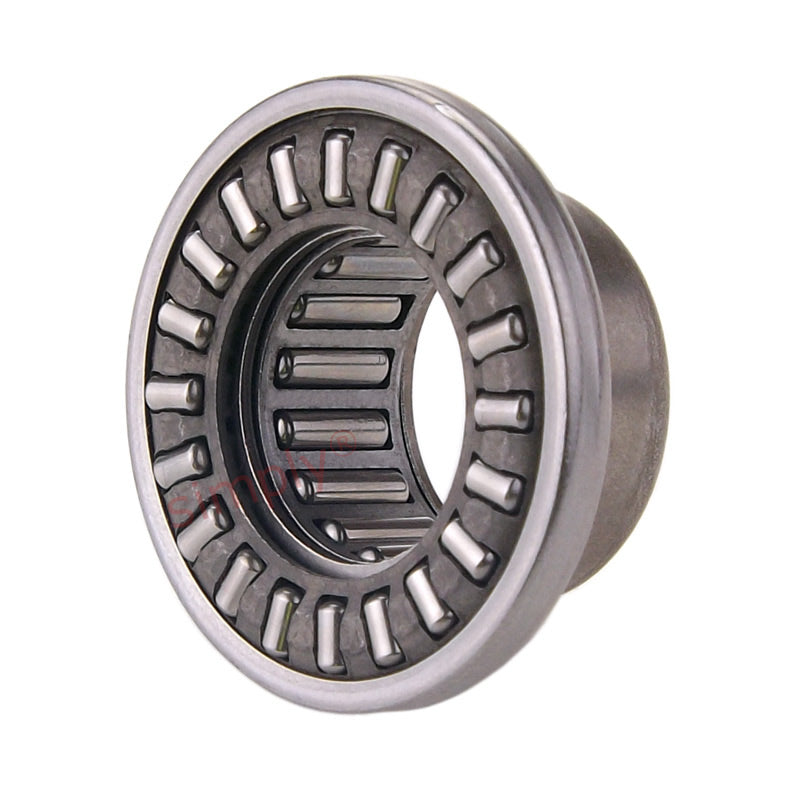

Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
- Regular price
- €153,10 ex VAT
- Sale price
- €153,10
- Regular price
-
In stock
Quantity Price Breaks
10
€136,26
19
€128,60
29
€127,07
39
€125,54
49
€124,01
74
€122,48
99
€114,83
199
€113,29
249
€111,76
499
€110,23
999
€107,17
SKU:
RAX425-MB
Major Brand RAX 425 Needle Combined Bearing with Needle Thrust Cage 25x37x24mm Allow 2-3 Days
- Regular price
- €153,10 ex VAT
- Sale price
- €153,10
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 25mm |
| C | = | 24mm |
| D | = | 37mm |
| Da | = | 42mm |
| Eb | = | 27.7mm |
| Ea | = | 37.4mm |
| C1 | = | 6mm |
| C2 | = | 9mm |
| rs min | = | 0.85mm |
| Radial dynamic load | = | 15.1 kN |
| Radial static load | = | 26.2 kN |
| Axial dynamic load | = | 13.3 kN |
| Axial static load | = | 49 kN |
| Speed rating | = | 7500 rpm |
| Inner ring | = | JR 20x25x20 kN |
| Weight | = | 0.099 kg |
