SKU: RAX417-MB
Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
- Regular price
- €267,06 ex VAT
- Sale price
- €267,06
- Regular price
-
Not in stock
Quantity Price Breaks
10
€237,68
19
€224,33
29
€221,66
39
€218,99
49
€216,32
74
€213,65
99
€200,30
199
€197,62
249
€194,95
499
€192,28
999
€186,94
SKU:
RAX417-MB
Major Brand RAX 417 Needle Combined Bearing with Needle Thrust Cage 17x26x21mm Allow 2-3 Days
- Regular price
- €267,06 ex VAT
- Sale price
- €267,06
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |

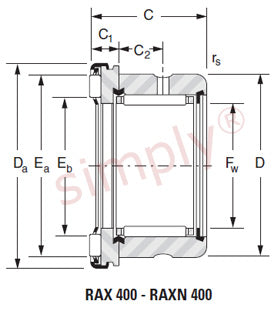

Technical
| Fw | = | 17mm |
| C | = | 21mm |
| D | = | 26mm |
| Da | = | 30mm |
| Eb | = | 19mm |
| Ea | = | 26.6mm |
| C1 | = | 5mm |
| C2 | = | 8mm |
| rs min | = | 0.65mm |
| Radial dynamic load | = | 11.8 kN |
| Radial static load | = | 16.3 kN |
| Axial dynamic load | = | 8.1 kN |
| Axial static load | = | 23 kN |
| Speed rating | = | 10500 rpm |
| Inner ring | = | JR 14x17x17 kN |
| Weight | = | 0.041 kg |
