SKU: RAX412-MB

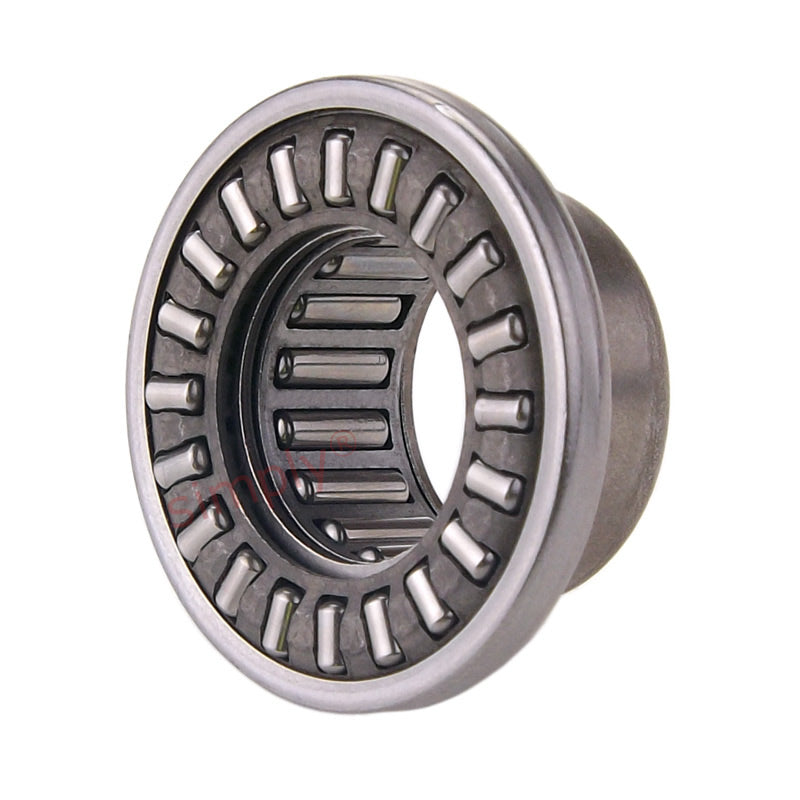

Major Brand RAX 412 Needle Combined Bearing with Needle Thrust Cage 12x21x19mm Allow 2-3 Days
- Regular price
- €119,88 ex VAT
- Sale price
- €119,88
- Regular price
-
Not in stock
Quantity Price Breaks
10
€106,69
19
€100,70
29
€99,50
39
€98,30
49
€97,10
74
€95,90
99
€89,91
199
€88,71
249
€87,51
499
€86,31
999
€83,92
SKU:
RAX412-MB
Major Brand RAX 412 Needle Combined Bearing with Needle Thrust Cage 12x21x19mm Allow 2-3 Days
- Regular price
- €119,88 ex VAT
- Sale price
- €119,88
- Regular price
-
Description
Nadella Combined Needle Bearings: Combined needle bearings comprise a thrust plate and an outer ring machined separately and joined by a strong metal insert. This arrangement prevents localised stresses and weakness in the area between the two components, thus eliminating the risk of damage during mounting. |
Technical
| Fw | = | 12mm |
| C | = | 19mm |
| D | = | 21mm |
| Da | = | 26mm |
| Eb | = | 15mm |
| Ea | = | 22.6mm |
| C1 | = | 5mm |
| C2 | = | 6mm |
| rs min | = | 0.35mm |
| Radial dynamic load | = | 6.78 kN |
| Radial static load | = | 9.03 kN |
| Axial dynamic load | = | 7.1 kN |
| Axial static load | = | 18.5 kN |
| Speed rating | = | 13000 rpm |
| Inner ring | = | JR 9x12x16 kN |
| Weight | = | 0.032 kg |
