SKU: RAE40-NPP-FA106-INA

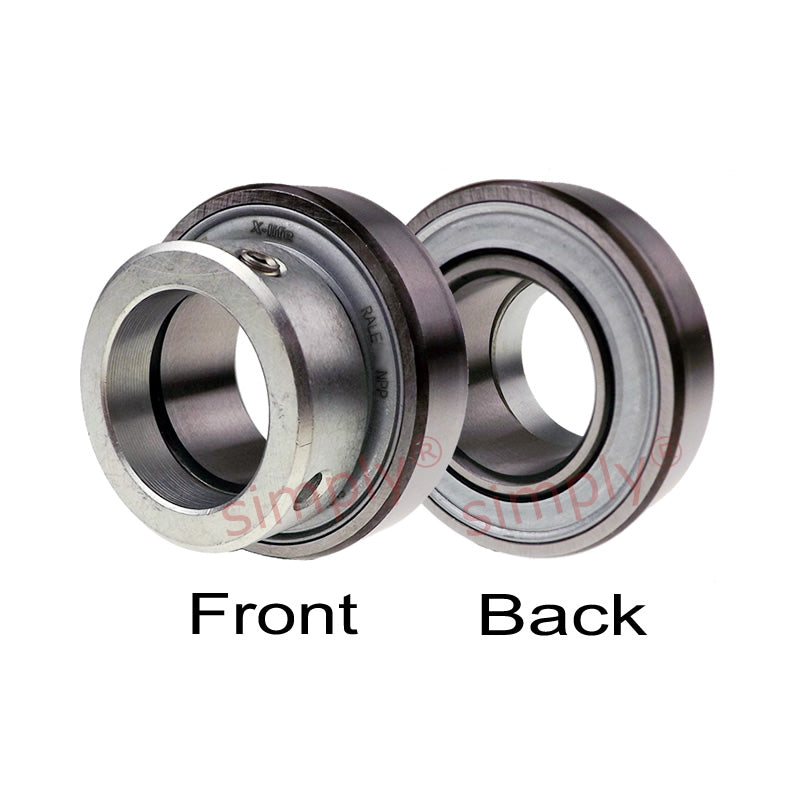

INA RAE40XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
INA RAE40XLNPPFA106 Metric Parallel Outer Bearing Insert with P Seals and Eccentric Collar 40x80x43.8mm
Regular price
€52,13
ex VAT
Regular price
Sale price
€52,13
ex VAT
In stock
Price Break
3+
€39,61
5+
€37,39
10+
€36,94
15+
€36,50
20+
€36,05
30+
€35,61
40+
€33,38
50+
€32,94
60+
€32,49
75+
€32,05
100+
€31,16
Quantity
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP Series Inserts: Bearing insert with parallel outer race, P seals and eccentric collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 43.8mm
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B1 | 43.8mm |
| B | 30.2mm |
| C | 21mm |
| d2 | 49.4mm |
| d3 max | 58mm |
| S | 11mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.64 kg |
