SKU: POS8L.EC

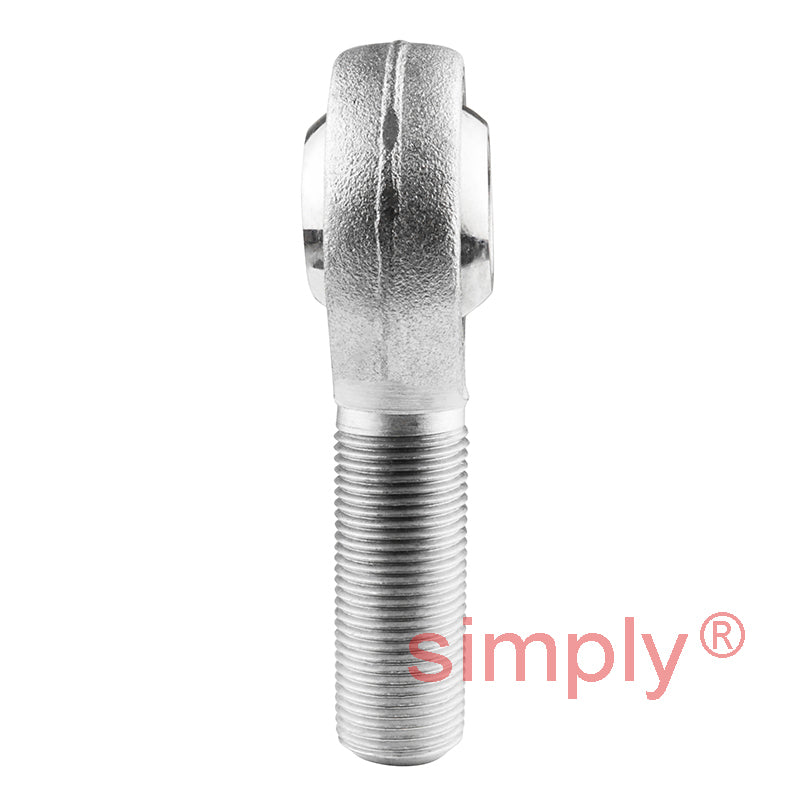

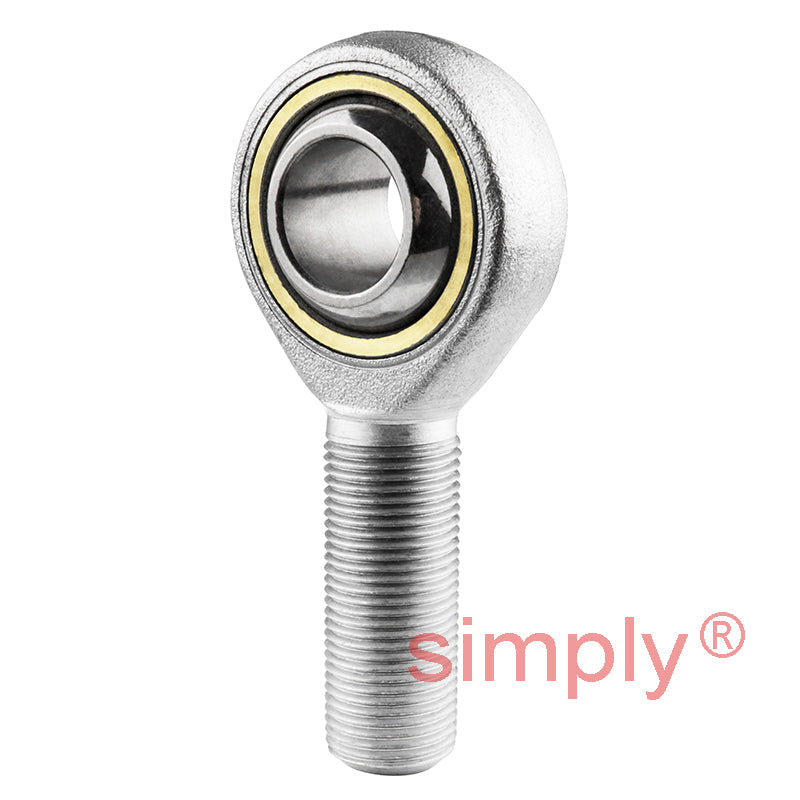

Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
- Regular price
- €35,20 ex VAT
- Sale price
- €35,20
- Regular price
-
In stock
Quantity Price Breaks
10
€31,33
19
€29,57
29
€29,22
39
€28,86
49
€28,51
74
€28,16
99
€26,40
199
€26,05
249
€25,70
499
€25,34
999
€24,64
SKU:
POS8L.EC
Budget POS8LEC Maintenance Free Left Hand Steel / PTFE Lined Plain Male Rod End 8mm Bore M8x1.25 Thread
- Regular price
- €35,20 ex VAT
- Sale price
- €35,20
- Regular price
-
Description
|
Steel Maintenance Free Male Rod End with PTFE Liner: These rod ends consist of a Steel body with a Steel ball running in a PTFE maintenance free liner captive in a Steel ball mount. Benefits: Cost-effective replacement bearing, sliding surfaces are steel against PTFE, and maintenance free. Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover them with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Steel, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |

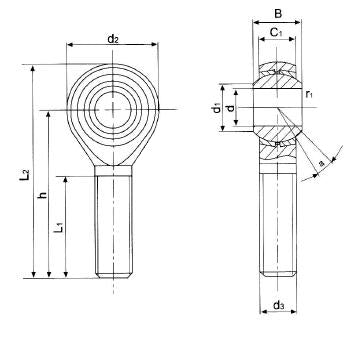

Technical
| d | = | 8mm |
| B | = | 12mm |
| r1 | = | 0.3mm |
| C1 | = | 9mm |
| d1 max | = | 10.3mm |
| d2 | = | 22mm |
| d3 | = | M8x1.25 |
| h | = | 42mm |
| l1 | = | 25mm |
| l2 | = | 53mm |
| Ball diameter | = | 5/8 inch |
| Dynamic load Cr | = | 7.1 kN |
| Static load Cor | = | 8.8 kN |
| Max angle & | = | alpha |
| = | 14 | |
| Weight | = | 0.032 kg |
