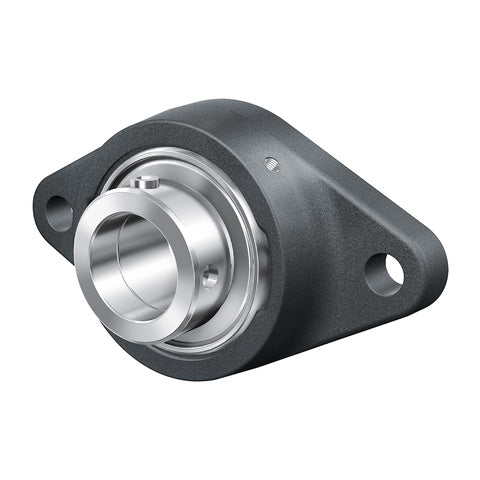

INA PCFT35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore

SKU: PCFT35-XL-INA

INA PCFT35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore

€55,90 ex VAT
€55,90
ex VAT
Not in stock

Quantity Price Breaks

4 €49,75
9 €46,96
19 €46,40
29 €45,84
39 €45,28
49 €44,72
59 €41,93
69 €41,37
79 €40,81
89 €40,25
99 €39,13
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
INA PCFT35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore
SKU: PCFT35-XL-INA

INA PCFT35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore

€55,90 ex VAT
€55,90
ex VAT

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
