SKU: PC14M-64S-37

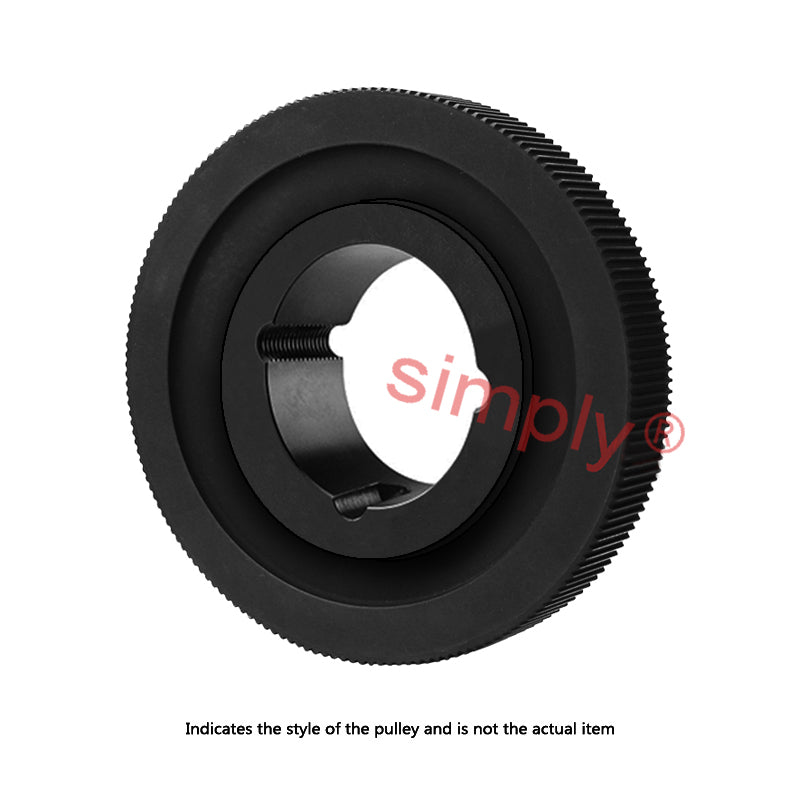

PC14M-64S-37 - 14mm Pitch 64 Tooth Polychain and Synchrochain Steel Taper Bore Timing Belt Pulley for 37mm Wide Belts
- Regular price
- €207,35 ex VAT
- Sale price
- €207,35
- Regular price
-
Quantity Price Breaks
PC14M-64S-37 - 14mm Pitch 64 Tooth Polychain and Synchrochain Steel Taper Bore Timing Belt Pulley for 37mm Wide Belts
- Regular price
- €207,35 ex VAT
- Sale price
- €207,35
- Regular price
-
Description
C14M Polychain and Synchrochain Timing Belt Pulley: We offer a comprehensive selection of timing pulleys (sprockets) designed for use with Synchrochain and Poly Chain belts. These pulleys are available in both pilot bore and taper lock bush types, accommodating a variety of applications. Manufactured from high-quality materials such as steel or cast iron with steel flanges, These pulleys meet industry standards, ensuring they deliver reliable, high-power performance. With a broad range of options and precisely engineered profiles, these pulleys provide a cost-effective solution without compromising on quality or durability.
Benefits: High-quality and durable, cost-effective solution, wide range availability
Technical
| Material | = | Steel |
| No. teeth | = | 64 |

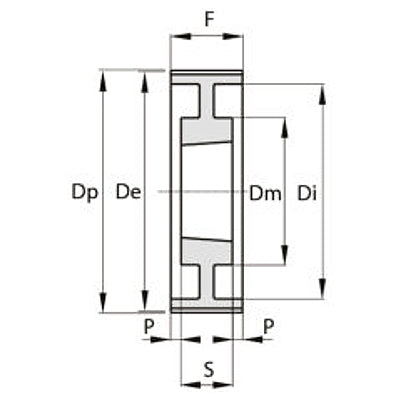

| Schematic Type | = | 7 |
| Bush no. | = | 3020 |
| Belt Width | = | 37mm |
| Max. bore (metric) | = | 75mm |
| Dp | = | 285.21mm |
| De | = | 282.41mm |
| Di | = | 242mm |
| Dm | = | 159mm |
| F | = | 51mm |
| S | = | 51mm |
| Weight Kg | = | 13.99 kg |
