SKU: NWB2209

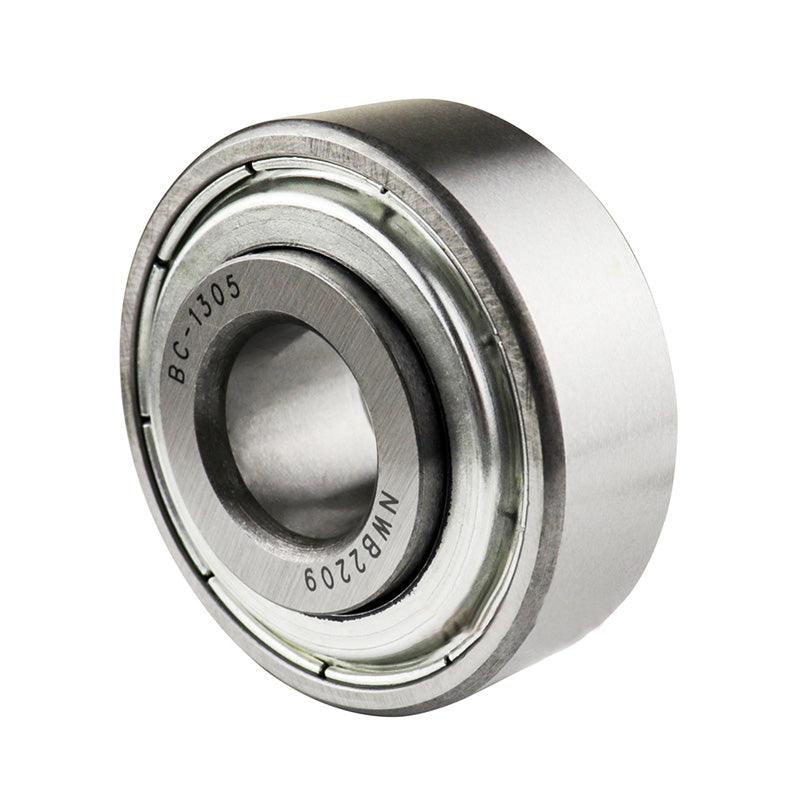

NWB 2209 Gang Disc Harrow Parallel Outer Round Bore Standard Non-Relubricatable Bearing 0.63x1.78x0.735 inch
- Regular price
- €29,78 ex VAT
- Sale price
- €29,78
- Regular price
-
In stock
Quantity Price Breaks
10
€26,50
19
€25,02
29
€24,72
39
€24,42
49
€24,12
74
€23,82
99
€22,34
199
€22,04
249
€21,74
499
€21,44
999
€20,85
SKU:
NWB2209
NWB 2209 Gang Disc Harrow Parallel Outer Round Bore Standard Non-Relubricatable Bearing 0.63x1.78x0.735 inch
- Regular price
- €29,78 ex VAT
- Sale price
- €29,78
- Regular price
-
Description
Gang Disc
Application conditions:
- Utilizes two to three support bearings on a common shaft with several disks spaced with spools
- Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
- A great working depth places the bearings directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage
- Shock load protection due to high grade ductile iron housing
- Exclusive patented sealing system eliminates the need for daily relubrication
Technical
| d | = | 0.632 inch = 16.053mm |
| D | = | 1.7805 inch = 45.225mm |
| Bi | = | 0.735 inch = 18.669mm |
| Be | = | 0.61 inch = 15.494mm |
