SKU: NUTR45X-MB

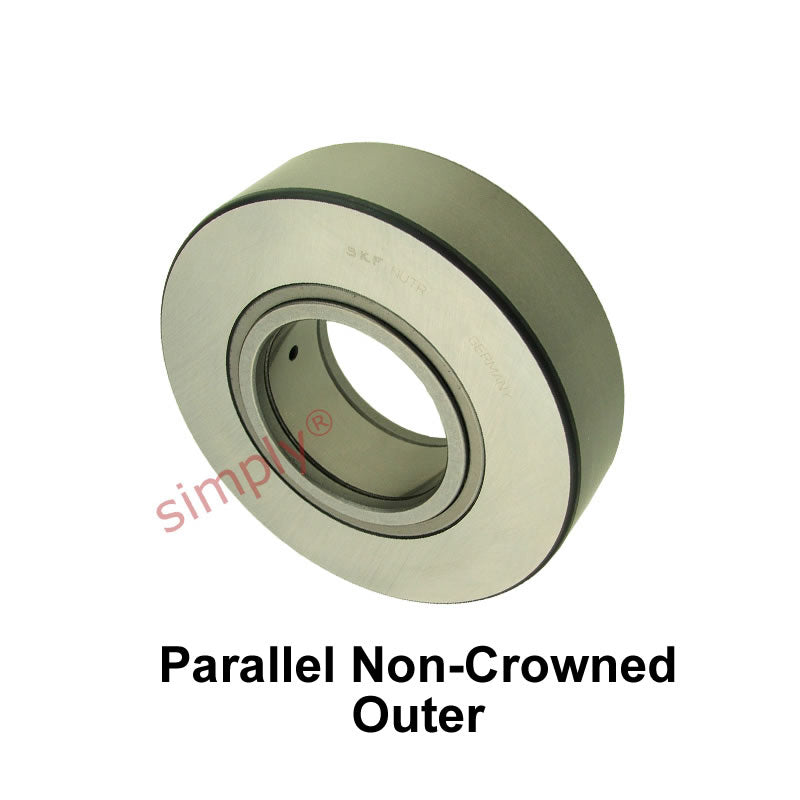

Major Brand NUTR45X Support Roller With Axial Guidance Parallel Non-Crowned Outer 45x85x32mm
- Regular price
- €190,46 ex VAT
- Sale price
- €190,46
- Regular price
-
Quantity Price Breaks
Major Brand NUTR45X Support Roller With Axial Guidance Parallel Non-Crowned Outer 45x85x32mm
- Regular price
- €190,46 ex VAT
- Sale price
- €190,46
- Regular price
-
Description
NUTR Axial Guidance Support Rollers: This type of support roller incorporates a full complement needle roller arrangement and permits high loads. Axial support is provided by two loose flange rings via the roller complement. They are able to accommodate heavy radial and axial loads and relatively high speed operation but will require frequent re-lubrication. For heavy shock load applications the NUTR series with 4 and 5 figure denominations should be used. NUTR rollers have an enhanced roller profile to enable better stress distribution. |
Technical
| d | = | 45mm |
| D | = | 85mm |
| B | = | 32mm |
| C | = | 30mm |
| d1 | = | 55mm |
| r min | = | 1.1mm |
| r1 min | = | 0.6mm |
| Speed rating | = | 1400 rpm |
| Basic dynamic load | = | 58300 N |
| Basic static load | = | 75000 N |
| Fatigue load limit Pu | = | 9300 N |
| Max radial dynamic force | = | 32500 N |
| Max radial static force | = | 46500 N |
| Weight | = | 880 g |
