SKU: NUP311-EU
NUP311 Budget Single Row Cylindrical Roller Bearing 55x120x29mm
NUP311 Budget Single Row Cylindrical Roller Bearing 55x120x29mm
Regular price
€83,34
ex VAT
Regular price
Sale price
€83,34
ex VAT
In stock
Price Break
10+
€63,33
19+
€59,77
29+
€59,06
39+
€58,35
49+
€57,64
74+
€56,93
99+
€53,37
199+
€52,66
249+
€51,94
499+
€51,23
999+
€49,81
Quantity
Couldn't load pickup availability
Description
Description
|

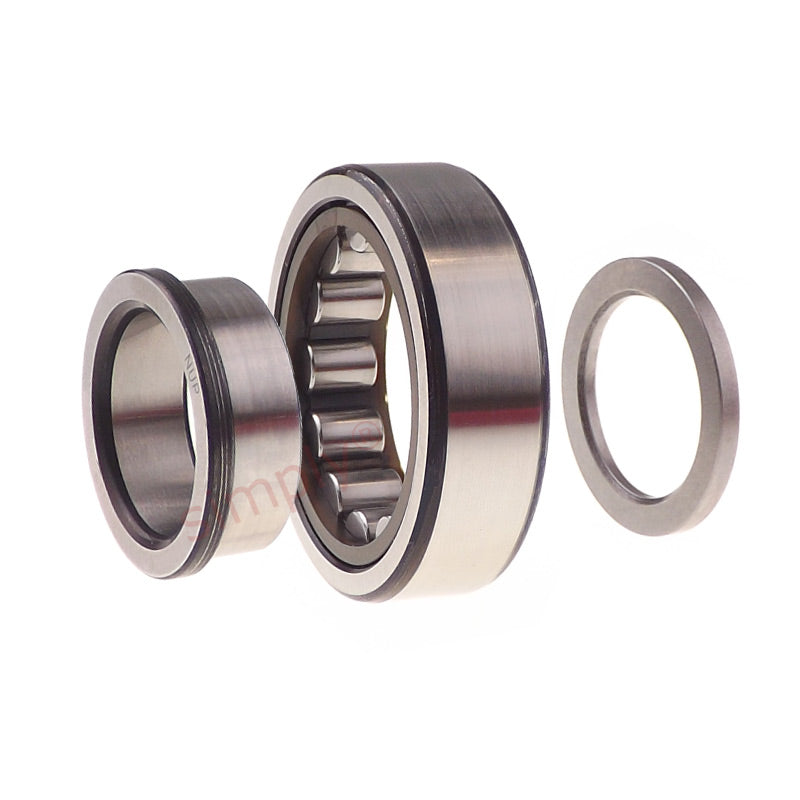

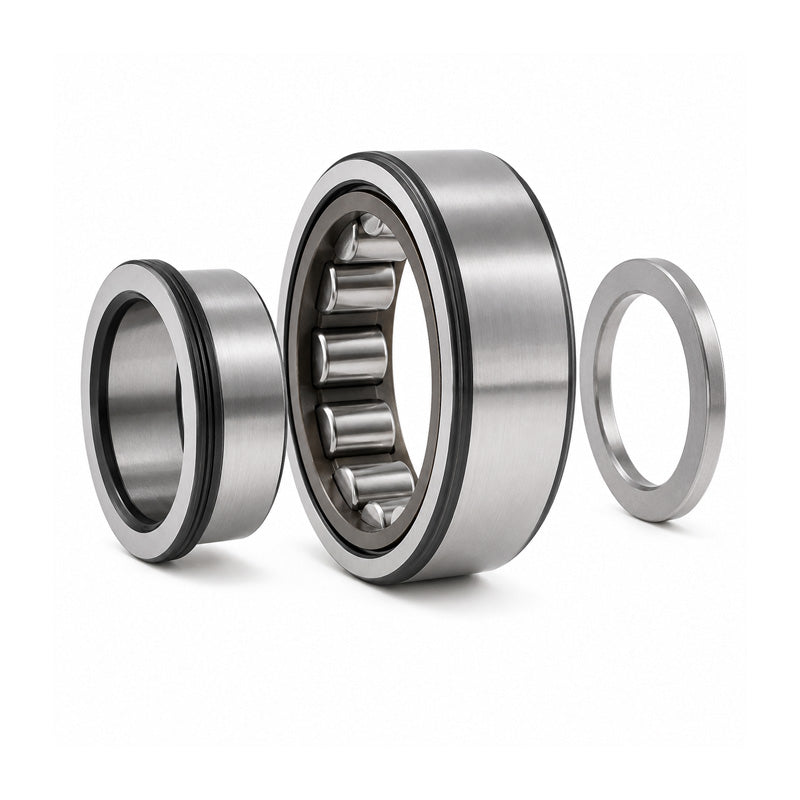

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 156 kN |
| Static load Co | 143 kN |
| Fatigue load limit Pu | 18.6 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 1.55 kg |
| Cage options | J.M.ML |
| d1 | 77.5mm |
| D1 | 101mm |
| F, E | 70.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| da min | 66mm |
| db min | 80mm |
| Da max | 109mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
