SKU: NUP2308-EU
NUP2308 Budget Single Row Cylindrical Roller Bearing 40x90x33mm
- Regular price
- €67,58 ex VAT
- Sale price
- €67,58
- Regular price
-
Not in stock
Quantity Price Breaks
10
€60,15
19
€56,77
29
€56,09
39
€55,42
49
€54,74
74
€54,06
99
€50,69
199
€50,01
249
€49,33
499
€48,66
999
€47,31
SKU:
NUP2308-EU

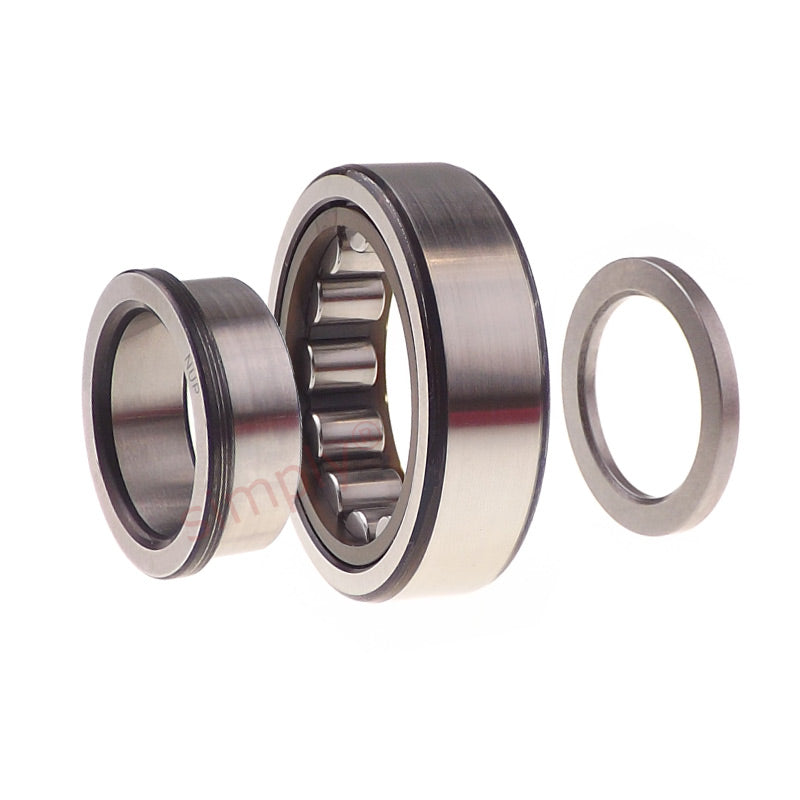

NUP2308 Budget Single Row Cylindrical Roller Bearing 40x90x33mm
- Regular price
- €67,58 ex VAT
- Sale price
- €67,58
- Regular price
-
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 40mm |
| D | = | 90mm |
| B | = | 33mm |
| Dynamic load C | = | 129 kN |
| Static load Co | = | 120 kN |
| Fatigue load limit Pu | = | 15.3 kN |
| Reference speed | = | 8000 rpm |
| Limiting speed | = | 9500 rpm |
| Weight | = | 0.98 kg |
| Cage options | = | M.ML |
| d1 | = | 57.5mm |
| D1 | = | 75.6mm |
| F, E | = | 52mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| da min | = | 49mm |
| db min | = | 60mm |
| Da max | = | 81mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.25 |
