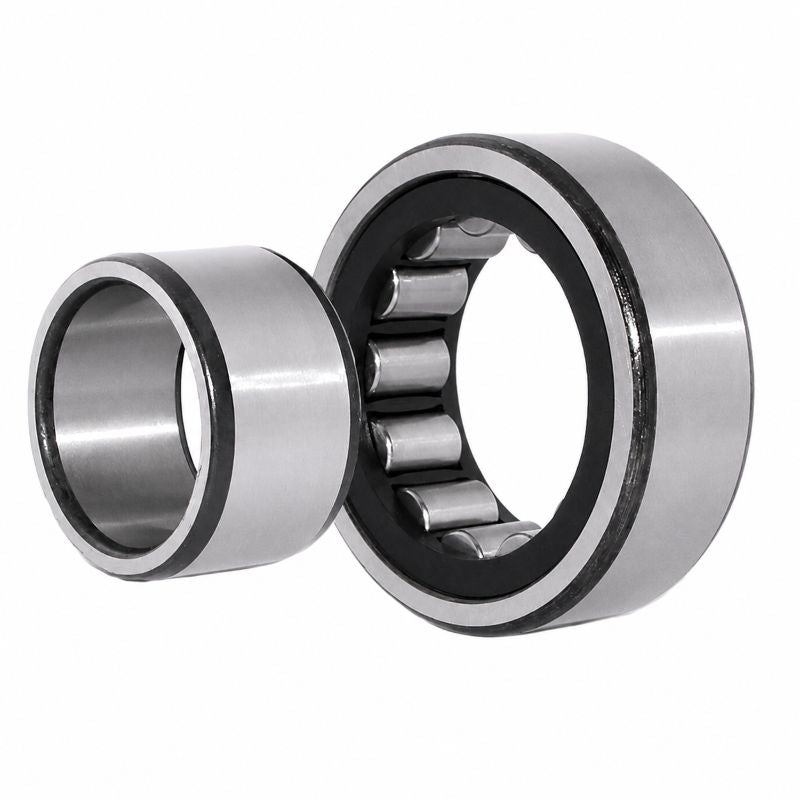

• SKF NU2236ECML Single Row Cylindrical Roller Bearing with Brass Cage 180x320x86mm
1 1

SKU: NU2236ECML-SKF

SKF NU2236ECML Single Row Cylindrical Roller Bearing with Brass Cage 180x320x86mm

SKF NU2236ECML Single Row Cylindrical Roller Bearing with Brass Cage 180x320x86mm
€2.371,29 ex VAT
€2.371,29 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
180mm
Outside Diameter:
320mm
Width:
86mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 180mm
D 320mm
B 86mm
Dynamic load C 1100 kN
Static load Co 1430 kN
Fatigue load limit Pu 146 kN
Reference speed 2200 rpm
Limiting speed 3200 rpm
Weight 31.5 kg
Alt cage M
d1 229mm
D1 280mm
F,E 215mm
r1r2 min 4mm
r3r4 min 4mm
S 4.2mm
da min 197mm
da max 210mm
db 218mm
Da max 303mm
ra max 3mm
rb max 3mm
kr 0.2
Angle ring HJ2236EC
Angle Ring Weight 1.9 kg
B1 12mm
B2 24mm
