SKU: NTA512
NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
- Regular price
- €2,77 ex VAT
- Sale price
- €2,77
- Regular price
-
In stock
Quantity Price Breaks
10
€2,47
19
€2,33
29
€2,30
39
€2,27
49
€2,24
74
€2,22
99
€2,08
199
€2,05
249
€2,02
499
€1,99
999
€1,94
SKU:
NTA512
NTA512 Needle Roller Cage Only 0.31x0.75x0.0781 inch
- Regular price
- €2,77 ex VAT
- Sale price
- €2,77
- Regular price
-
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |

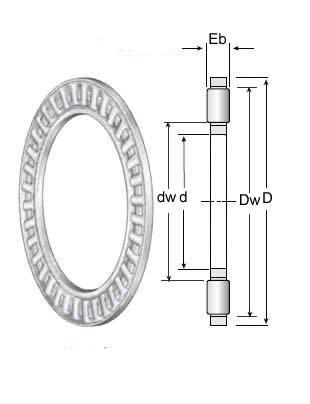

Technical
| d | = | 0.312 inch |
| D | = | 0.75 inch |
| Eb | = | 0.0781 inch |
| Dw | = | 0.64 inch |
| dw | = | 0.40 inch |
| Dynamic load | = | 5.83 kN |
| Static load | = | 13.17 kN |
| Limiting speed | = | 24000 rpm |
| Weight | = | 0.001816 kg |
