SKU:
NTA4052-TRA4052
NTA4052 Needle Roller Cage Thrust Assembly with 2 TRA4052 Washers 2.5x3.25x0.1406 inch
- Regular price
- €20,77 ex VAT
- Sale price
- €20,77
- Regular price
-
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |

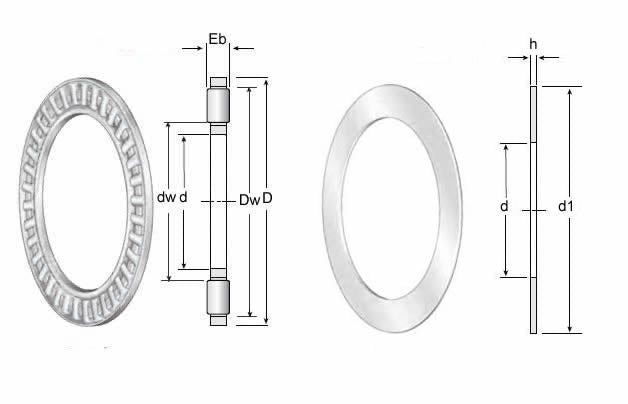

Technical
| d | = | 2.5 inch |
| D | = | 3.25 inch |
| Eb | = | 0.0806 inch |
| Dw | = | 2.59 inch |
| dw | = | 3.07 inch |
| Dynamic load | = | 25.53 kN |
| Static load | = | 152.13 kN |
| Limiting speed | = | 5100 rpm |
| Weight | = | 0.018614 kg |
| Washer | = | Dimensions |
| d | = | 2.500 inch |
| d1 | = | 3.25 inch |
| h min | = | 0.03 inch |
| h max | = | 0.032 inch |
| Pilot min | = | 2.497 inch |
| Pilot max | = | 2.500 inch |
| Dia to clear washer | = | 3.281 inch |
| Weight | = | 0.029 lbs |
