SKU: NP75-RHP

RHP NP75 Two Bolt Cast Iron Pillow Block and 75mm Bore Grub Screw Full Width Insert

RHP NP75 Two Bolt Cast Iron Pillow Block and 75mm Bore Grub Screw Full Width Insert
Regular price €282,33 ex VAT
Regular price Sale price €282,33 ex VAT
Sale Sold out

In stock

Price Break
10+ €214,56
20+ €202,51
30+ €200,10
40+ €197,69
50+ €195,28
75+ €192,86
100+ €180,81
200+ €178,40
250+ €175,99
500+ €173,58
1000+ €168,76
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

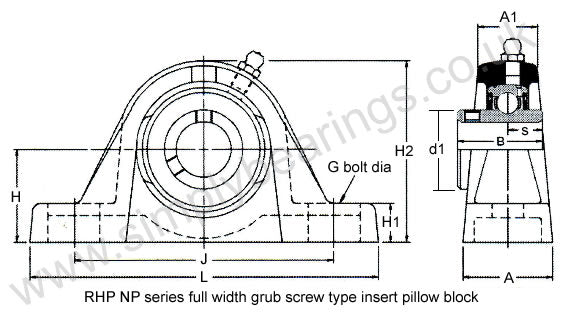

Bore 75mm
L 275mm
H 82.6mm
H1 28mm
H2 164mm
J max 228mm
J min 206mm
G 24mm
A 74mm
A1 48mm
B 77.77mm
s 33.37mm
d1 92mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 9 kg
Insert <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
