SKU: NP5/8-RHP

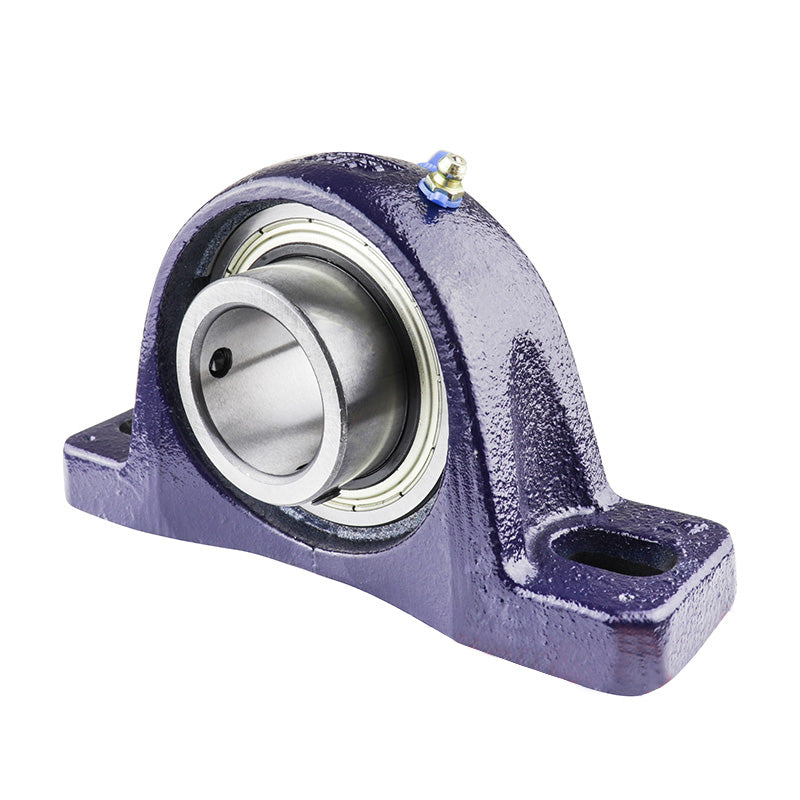

RHP NP5/8 Two Bolt Cast Iron Pillow Block and 5/8 Bore Grub Screw Full Width Insert
RHP NP5/8 Two Bolt Cast Iron Pillow Block and 5/8 Bore Grub Screw Full Width Insert
Regular price
€40,11
ex VAT
Regular price
Sale price
€40,11
ex VAT
In stock
Price Break
10+
€30,48
20+
€28,77
30+
€28,43
40+
€28,08
50+
€27,74
75+
€27,40
100+
€25,69
200+
€25,34
250+
€25,00
500+
€24,66
1000+
€23,97
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.366-3.957 inch
Technical
Technical
| Bore | 5/8 inch |
|---|---|
| L | 4.98 inch |
| H | 1.189 inch |
| H1 | 0.559 inch |
| H2 | 2.252 inch |
| J max | 3.957 inch |
| J min | 3.366 inch |
| G | 0.375 inch |
| A | 1.201 inch |
| A1 | 0.807 inch |
| B | 1.078 inch |
| s | 0.455 inch |
| d1 | 0.953 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-5/8G+insonly">1017-5/8G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
