SKU: NP3/4-RHP

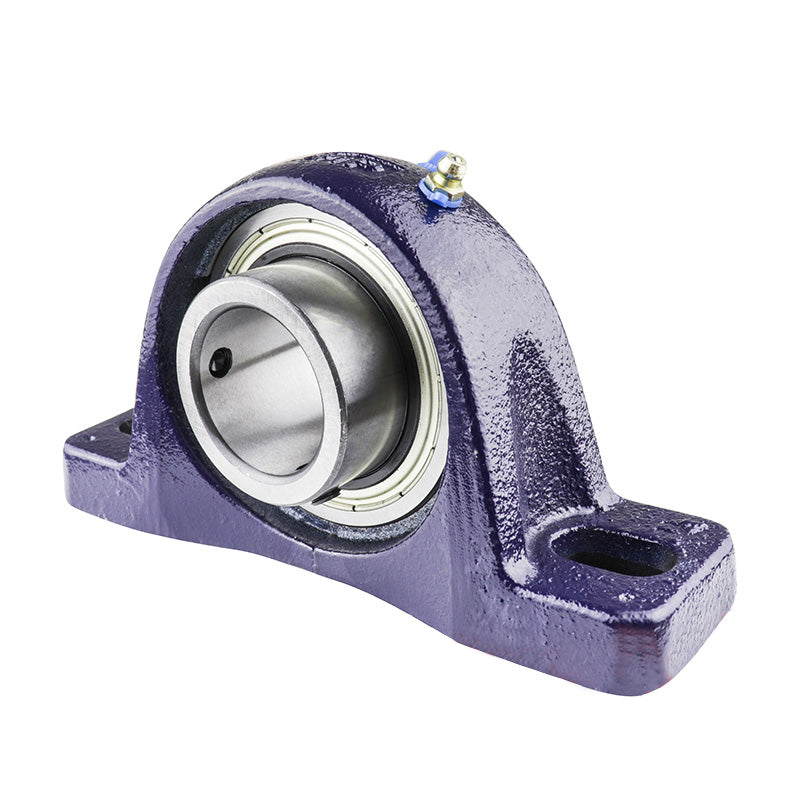

RHP NP3/4 Two Bolt Cast Iron Pillow Block and 3/4 Bore Grub Screw Full Width Insert
RHP NP3/4 Two Bolt Cast Iron Pillow Block and 3/4 Bore Grub Screw Full Width Insert
Regular price
€39,74
ex VAT
Regular price
Sale price
€39,74
ex VAT
In stock
Price Break
10+
€30,19
20+
€28,50
30+
€28,16
40+
€27,82
50+
€27,48
75+
€27,14
100+
€25,45
200+
€25,11
250+
€24,77
500+
€24,43
1000+
€23,75
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.484-3.957 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 5 inch |
| H | 1.311 inch |
| H1 | 0.551 inch |
| H2 | 2.567 inch |
| J max | 3.957 inch |
| J min | 3.484 inch |
| G | 0.375 inch |
| A | 1.28 inch |
| A1 | 0.886 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
