SKU: NP3.1/2-RHP

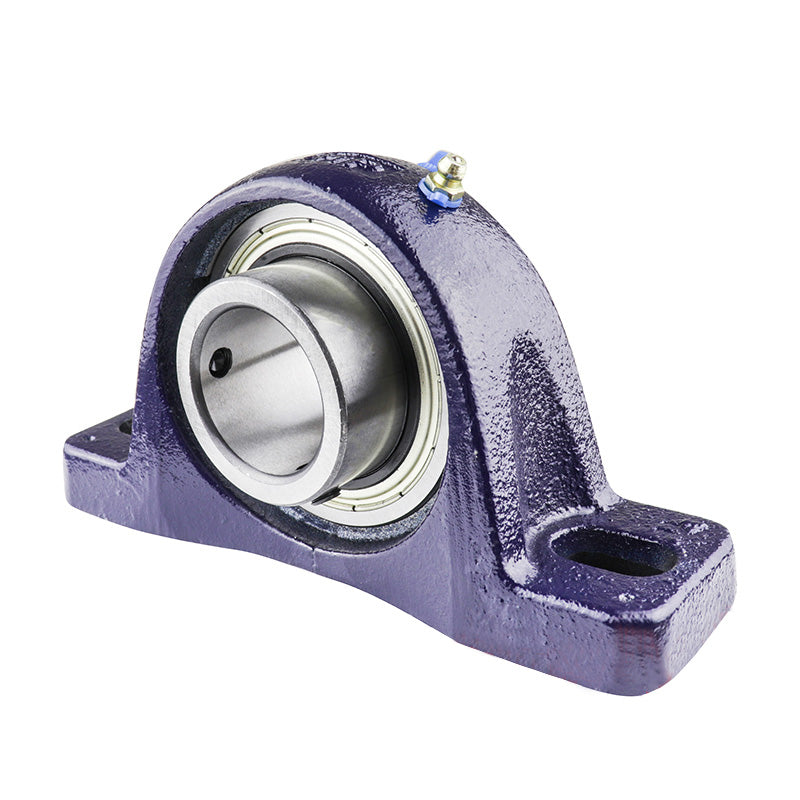

RHP NP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Full Width Insert
RHP NP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Full Width Insert
Regular price
€606,85
ex VAT
Regular price
Sale price
€606,85
ex VAT
In stock
Price Break
10+
€461,18
20+
€435,28
30+
€430,09
40+
€424,91
50+
€419,73
75+
€414,55
100+
€388,64
200+
€383,46
250+
€378,28
500+
€373,09
1000+
€362,73
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- NP
- Bolt Hole Centres:
- 9.606-11.024 inch
Technical
Technical
| Bore | 3-1/2 inch |
|---|---|
| L | 12.874 inch |
| H | 4000 inch |
| H1 | 1.417 inch |
| H2 | 7.874 inch |
| J max | 11.024 inch |
| J min | 9.606 inch |
| G | 0.875 inch |
| A | 3.465 inch |
| A1 | 2.441 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 14.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a> |
| Casting group | 15 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
