SKU: NP25A-RHP

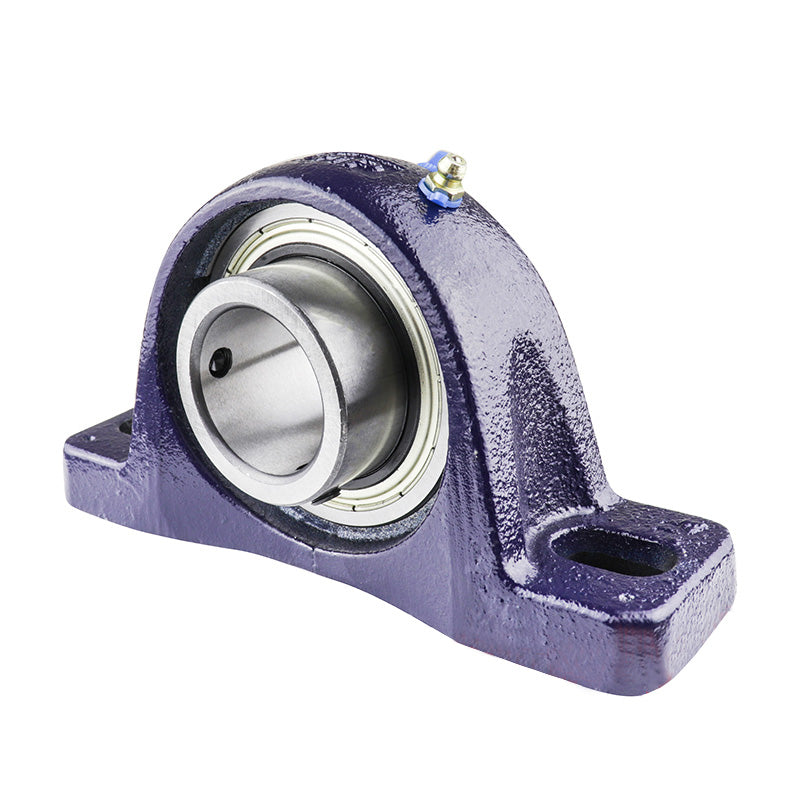

RHP NP25A Two Bolt Cast Iron Pillow Block and 25mm Bore Grub Screw Flat Back Insert

RHP NP25A Two Bolt Cast Iron Pillow Block and 25mm Bore Grub Screw Flat Back Insert
Regular price €45,43 ex VAT
Regular price Sale price €45,43 ex VAT
Sale Sold out

In stock

Price Break
10+ €34,52
20+ €32,58
30+ €32,19
40+ €31,81
50+ €31,42
75+ €31,03
100+ €29,09
200+ €28,70
250+ €28,31
500+ €27,93
1000+ €27,15
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

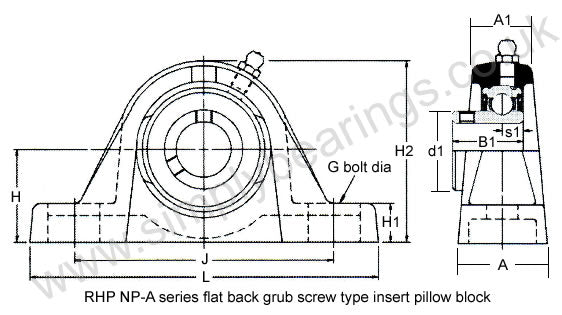

Bore 25mm
L 139mm
H 36.5mm
H1 16mm
H2 71mm
J max 112.7mm
J min 96.8mm
G 10mm
A 36.5mm
A1 24.5mm
B1 27.35mm
s1 7.56mm
d1 34.01mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
