SKU: NP16-RHP

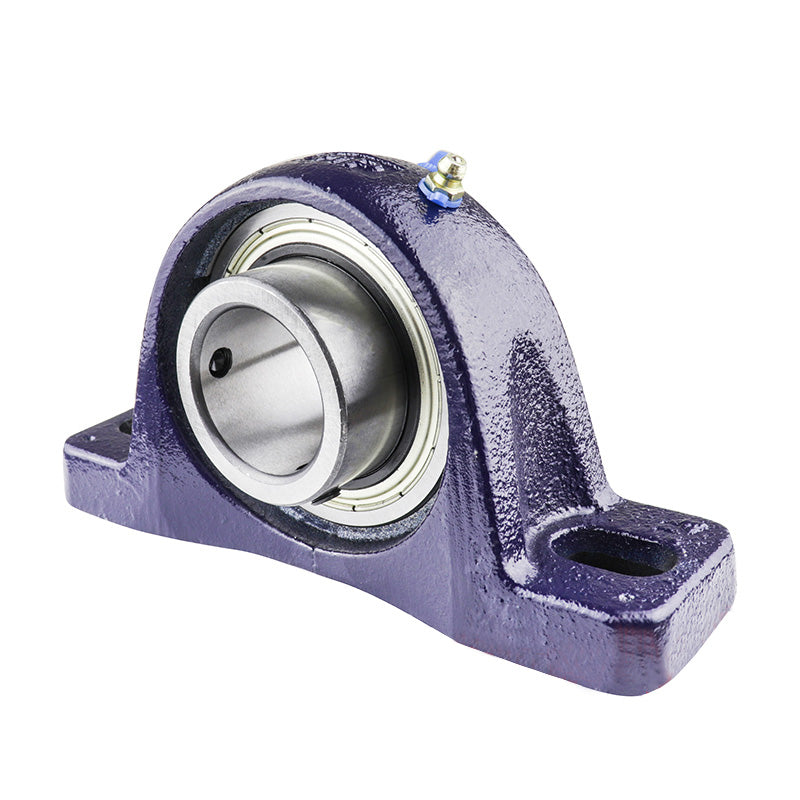

RHP NP16 Two Bolt Cast Iron Pillow Block and 16mm Bore Grub Screw Full Width Insert
RHP NP16 Two Bolt Cast Iron Pillow Block and 16mm Bore Grub Screw Full Width Insert
Regular price
€37,79
ex VAT
Regular price
Sale price
€37,79
ex VAT
In stock
Price Break
10+
€28,72
20+
€27,10
30+
€26,78
40+
€26,46
50+
€26,14
75+
€25,81
100+
€24,20
200+
€23,88
250+
€23,55
500+
€23,23
1000+
€22,59
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- NP
- Bolt Hole Centres:
- 85.5-100.5mm
Technical
Technical
| Bore | 16mm |
|---|---|
| L | 126.5mm |
| H | 30.2mm |
| H1 | 14.2mm |
| H2 | 57.2mm |
| J max | 100.5mm |
| J min | 85.5mm |
| G | 10mm |
| A | 30.5mm |
| A1 | 20.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-16G+insonly">1017-16G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
