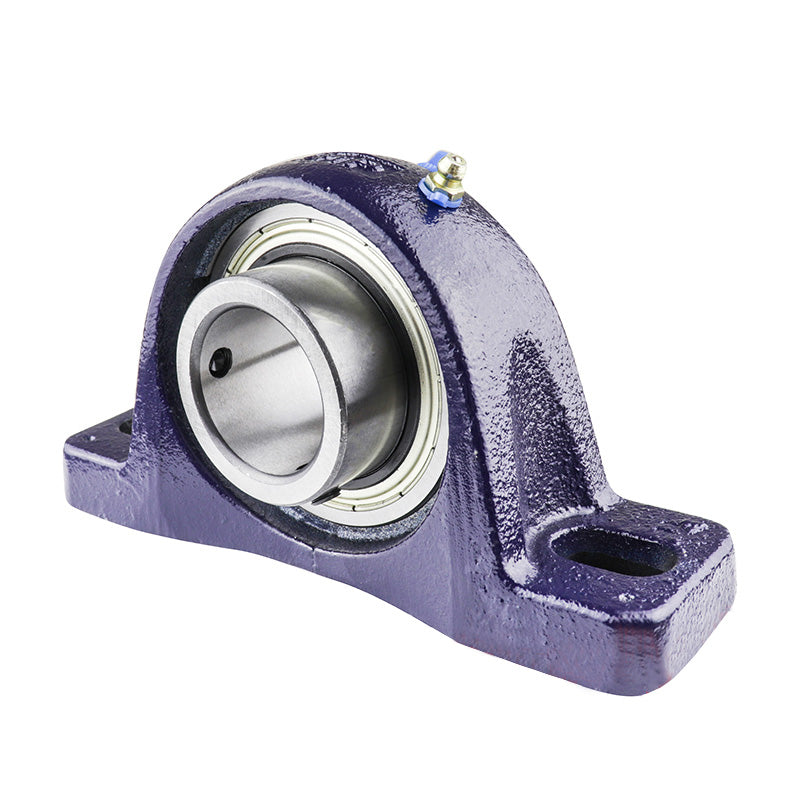

RHP NP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Full Width Insert
RHP NP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Full Width Insert
Regular price
€47,74
ex VAT
Regular price
Sale price
€47,74
ex VAT
In stock
Price Break
10+
€36,27
20+
€34,24
30+
€33,83
40+
€33,42
50+
€33,01
75+
€32,61
100+
€30,57
200+
€30,16
250+
€29,75
500+
€29,34
1000+
€28,53
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- NP
- Bolt Hole Centres:
- 3.811-4.437 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 5.472 inch |
| H | 1.437 inch |
| H1 | 0.63 inch |
| H2 | 2.795 inch |
| J max | 4.437 inch |
| J min | 3.811 inch |
| G | 0.375 inch |
| A | 1.437 inch |
| A1 | 0.965 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
