SKU: NP1/2-RHP

RHP NP1/2 Two Bolt Cast Iron Pillow Block and 1/2 Bore Grub Screw Full Width Insert

RHP NP1/2 Two Bolt Cast Iron Pillow Block and 1/2 Bore Grub Screw Full Width Insert
Regular price €40,11 ex VAT
Regular price Sale price €40,11 ex VAT
Sale Sold out

In stock

Price Break
10+ €30,48
20+ €28,77
30+ €28,43
40+ €28,08
50+ €27,74
75+ €27,40
100+ €25,69
200+ €25,34
250+ €25,00
500+ €24,66
1000+ €23,97
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

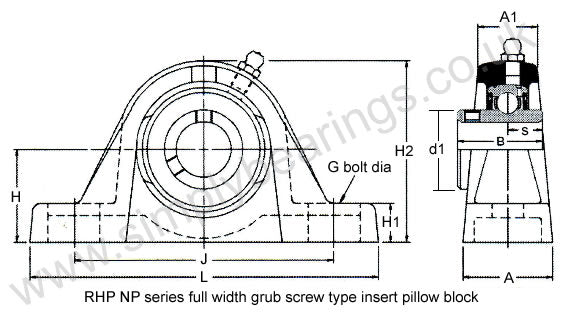

Bore 1/2 inch
L 4.98 inch
H 1.189 inch
H1 0.559 inch
H2 2.252 inch
J max 3.957 inch
J min 3.366 inch
G 0.375 inch
A 1.201 inch
A1 0.807 inch
B 1.078 inch
s 0.455 inch
d1 0.953 inch
Dynamic load Cr 9550 N
Static load Cor 4800 N
Rec max speed 7000 rpm
Weight 0.5 kg
Insert <a href="advanced_search_result.php?keywords=1017-1/2G+insonly">1017-1/2G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
