SKU: NP1.11/16-RHP

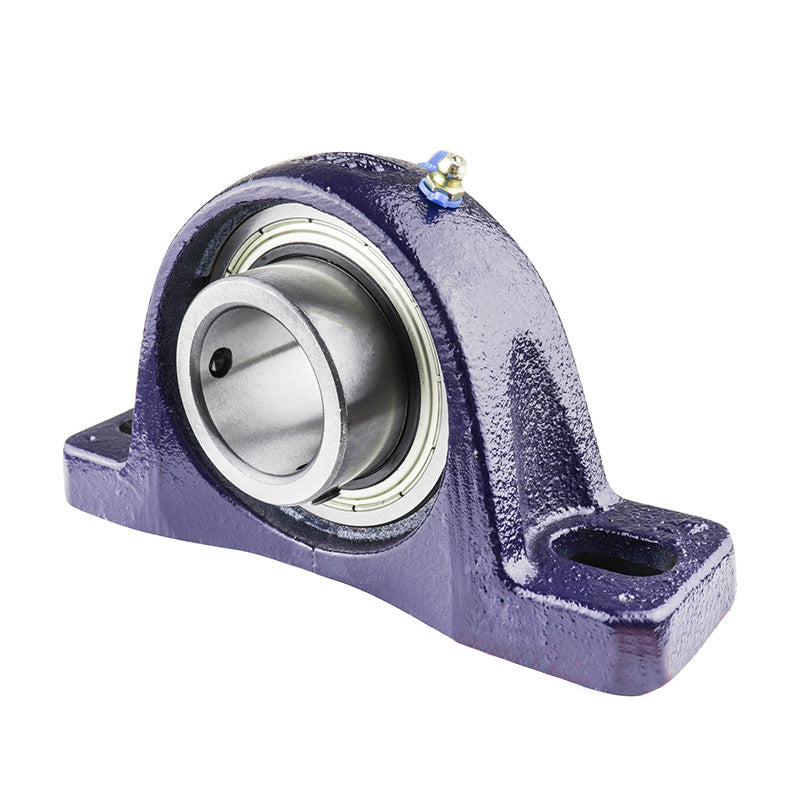

RHP NP1-11/16 Two Bolt Cast Iron Pillow Block and 1-11/16 Bore Grub Screw Full Width Insert
RHP NP1-11/16 Two Bolt Cast Iron Pillow Block and 1-11/16 Bore Grub Screw Full Width Insert
Regular price
€85,68
ex VAT
Regular price
Sale price
€85,68
ex VAT
In stock
Price Break
10+
€65,12
20+
€61,46
30+
€60,73
40+
€59,99
50+
€59,26
75+
€58,53
100+
€54,87
200+
€54,14
250+
€53,41
500+
€52,68
1000+
€51,21
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 5.531-6.083 inch
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 7.5 inch |
| H | 2.126 inch |
| H1 | 0.787 inch |
| H2 | 4.252 inch |
| J max | 6.083 inch |
| J min | 5.531 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
