SKU: NP1.1/8-RHP

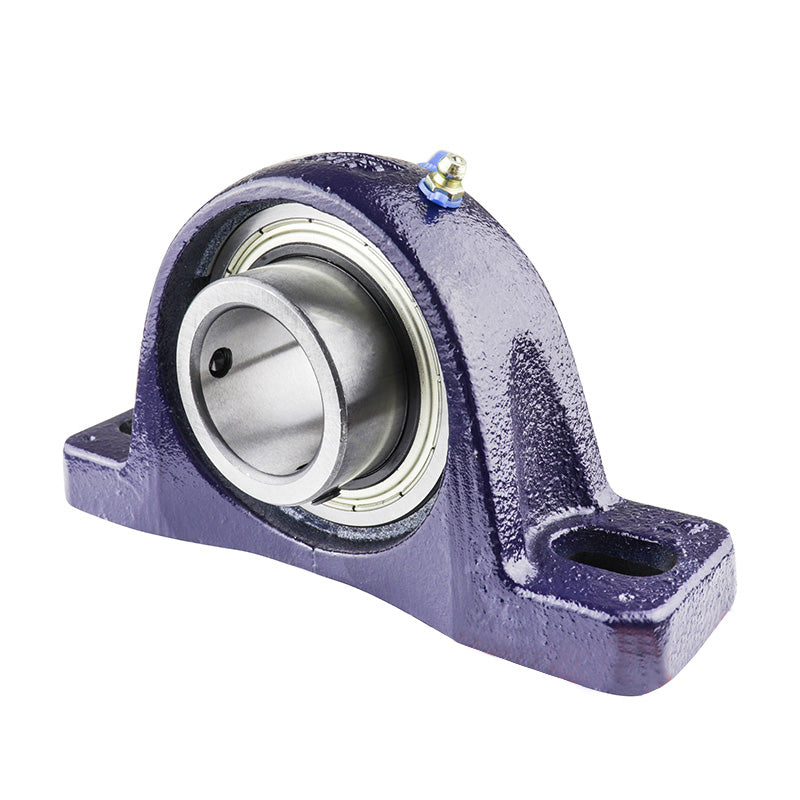

RHP NP1-1/8 Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Grub Screw Full Width Insert
RHP NP1-1/8 Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Grub Screw Full Width Insert
Regular price
€56,57
ex VAT
Regular price
Sale price
€56,57
ex VAT
In stock
Price Break
10+
€42,98
20+
€40,57
30+
€40,09
40+
€39,60
50+
€39,12
75+
€38,64
100+
€36,22
200+
€35,74
250+
€35,26
500+
€34,77
1000+
€33,81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 4.272-5.098 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 6.319 inch |
| H | 1.689 inch |
| H1 | 0.697 inch |
| H2 | 3.256 inch |
| J max | 5.098 inch |
| J min | 4.272 inch |
| G | 0.5 inch |
| A | 1.634 inch |
| A1 | 1.083 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8G+insonly">1030-1-1/8G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
