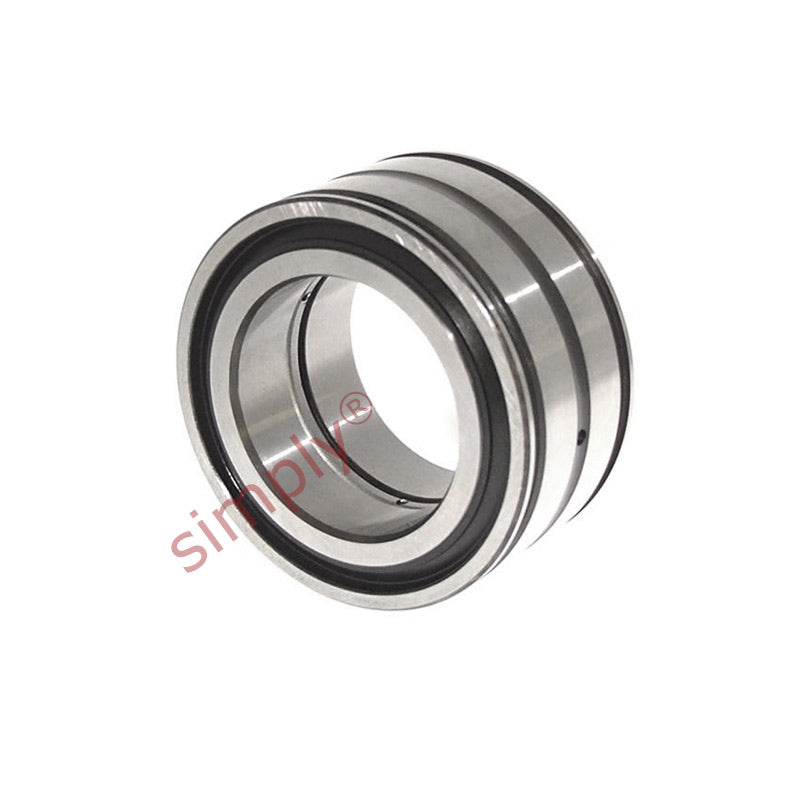

NNF50362LSV Full Complement Cylindrical Roller Bearing 180x280x136mm

SKU: NNF.5036.2LS.V.MB

NNF50362LSV Full Complement Cylindrical Roller Bearing 180x280x136mm

€1.914,77 ex VAT
€1.914,77
ex VAT
Not in stock

Quantity Price Breaks

10 €1.704,15
19 €1.608,41
29 €1.589,26
39 €1.570,11
49 €1.550,96
74 €1.531,82
99 €1.436,08
199 €1.416,93
249 €1.397,78
499 €1.378,63
999 €1.340,34
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
NNF50362LSV Full Complement Cylindrical Roller Bearing 180x280x136mm
SKU: NNF.5036.2LS.V.MB

NNF50362LSV Full Complement Cylindrical Roller Bearing 180x280x136mm

€1.914,77 ex VAT
€1.914,77
ex VAT

Description

NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Technical

d = 180mm
D = 280mm
B = 136mm
Weight = 30.1kg
