SKU: NNF.5009.2LS.V.MB

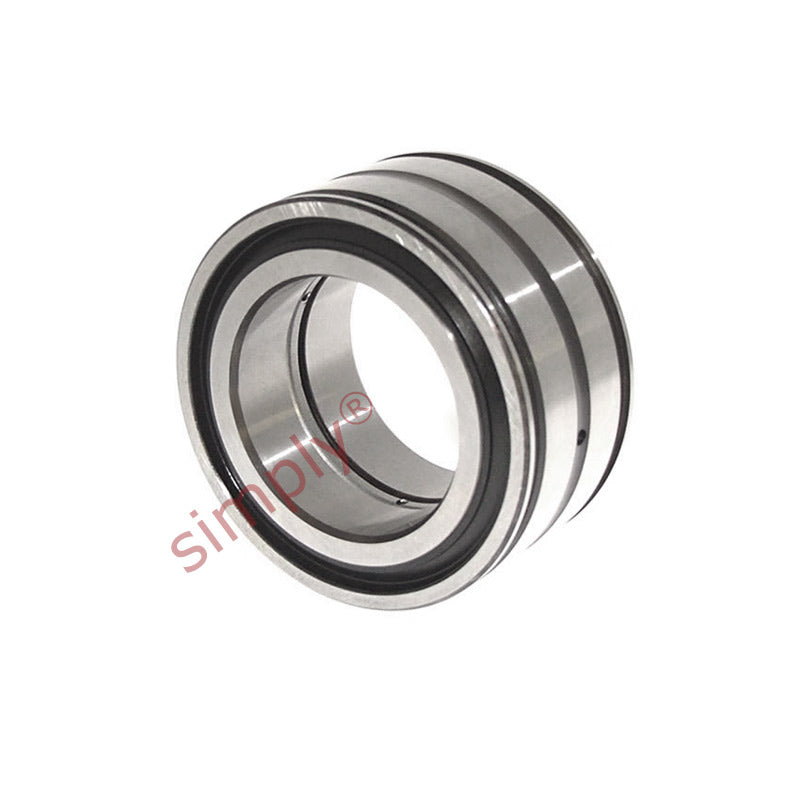

NNF50092LSV Full Complement Cylindrical Roller Bearing 45x75x40mm
- Regular price
- €186,58 ex VAT
- Sale price
- €186,58
- Regular price
-
Not in stock
Quantity Price Breaks
10
€166,06
19
€156,73
29
€154,86
39
€153,00
49
€151,13
74
€149,26
99
€139,94
199
€138,07
249
€136,20
499
€134,34
999
€130,61
SKU:
NNF.5009.2LS.V.MB
NNF50092LSV Full Complement Cylindrical Roller Bearing 45x75x40mm
- Regular price
- €186,58 ex VAT
- Sale price
- €186,58
- Regular price
-
Description
|
NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc. Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant |
Technical
| d | = | 45mm |
| D | = | 75mm |
| B | = | 40mm |
| Weight | = | 0.7kg |
